VZO 8 Aquametro Oil Meter – (4-135 Max 200 litre/hr)

Name: VZO 8 Aquametro Oil Meter - (4-135 Max 200 litre/hr)
SKU: VZO 8
Availability: BackOrder

VZO 8 Contoil Oil Meter – (4-135 Max 200 litre/hr)
Mechanical Totaliser (Litres)
Non-reset 1/4″ BSP
Product Code: 92630

VZO 8 Contoil Oil Meter – (4-135 Max 200 litre/hr)
Mechanical Totaliser (Litres)
Non-reset 1/4″ BSP

Product Code: 92630
Max Temp 60C
Max Pressure 25 bar
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

VZO 8

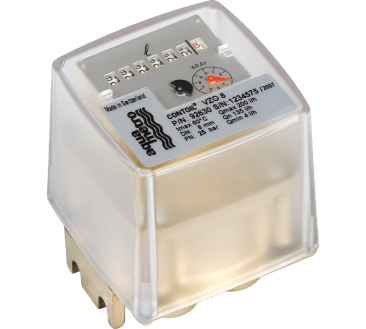

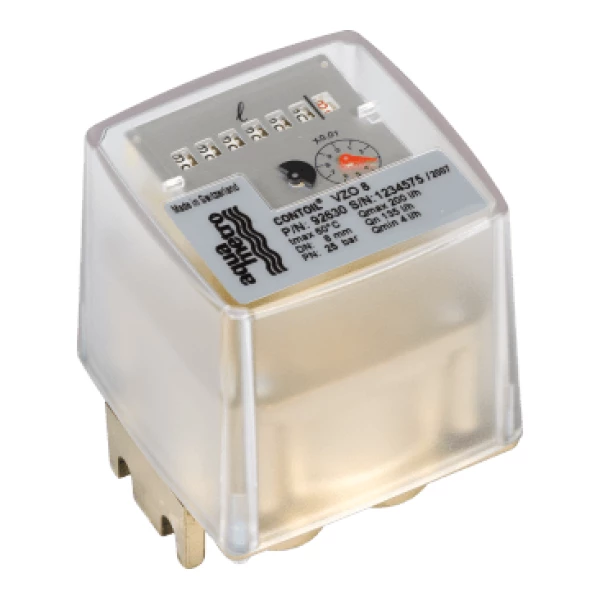

CONTOIL^® Oil meter VZO 8

Ring piston meter for mineral oil, with roller counter

Nominal diameter: DN 8 mm

Connection (bottom): G1/4″ inside thread

Nominal pressure: PN 25 bar

Dimensions: 65 x 65 x 79 mm

Installation position: horizontal / vertical

Temperature, max.: 60°C

Measuring range (at visc. 1…20 mPa.s): 4…200 l/h

Max. continuous flow Qn: 135 l/h

Max. measuring deviation: ± 1% of measured value

Repeatability: ± 0.2%

Registration capacity: 1000000 l

Gewicht	10 kg
