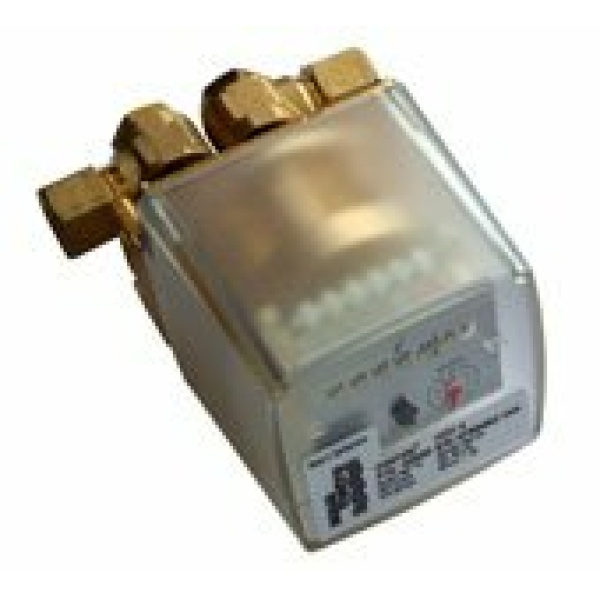

VZO 4 Contoil Oil Meter – (1-50 Max 80 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch
1/8″ BSP (Supplied c/w 10mm Oil line fittings)
Product Code: 89761
Pulse Output = 0.1 Litre/Pulse Reed Switch
1/8″ BSP (Supplied c/w 10mm Oil line fittings)
Product Code: 89761
-
Max Temp 60C
-
Max Pressure 25 bar
-
Positive Displacement / Low Pressure Drop Design
-
Accuracy 1% of actual value 8 Digit Totaliser
Specification
VZO 4 -RE 0,1
CONTOIL® Oil meter VZO 4-RE 0.1
Ring piston meter for mineral oil, with roller counter
Nominal diameter: DN 4 mm
Connection (bottom): G1/8″ inside thread
Nominal pressure: PN 25 bar
Dimensions: 65 x 65 x 79 mm
Installation position: horizontal / vertical
Temperature, max.: 60°C
Measuring range (at visc. 1…20 mPa.s): 1…80 l/h
Max. continuous flow Qn: 50 l/h
Max. measuring deviation: 2.0…80 l/h ± 1%
1…2 l/h +1/-2 %
Repeatability: ± 0.2%
Registration capacity: 100000 Litres
