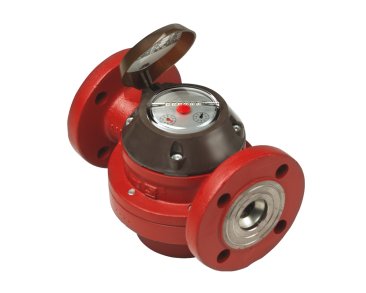

VZO 25 Aquametro Oil Meter – (75-2000 Max 3000 litre/hr)

Name: VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr)
SKU: VZO 25 FL 130/25
Availability: BackOrder

VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92059

VZO 25 Contoil Oil Meter – (75-2000 Max 3000 litre/hr)
Mechanical Totaliser (Litres) Non-reset
25mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92059
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 25 FL 130/25

CONTOIL® oil meter VZO 25 FL 130/25
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 75…3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
