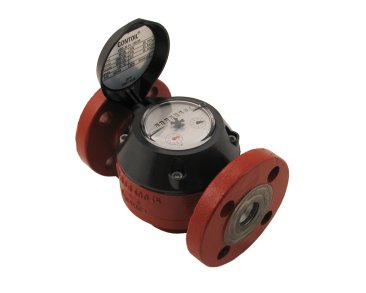

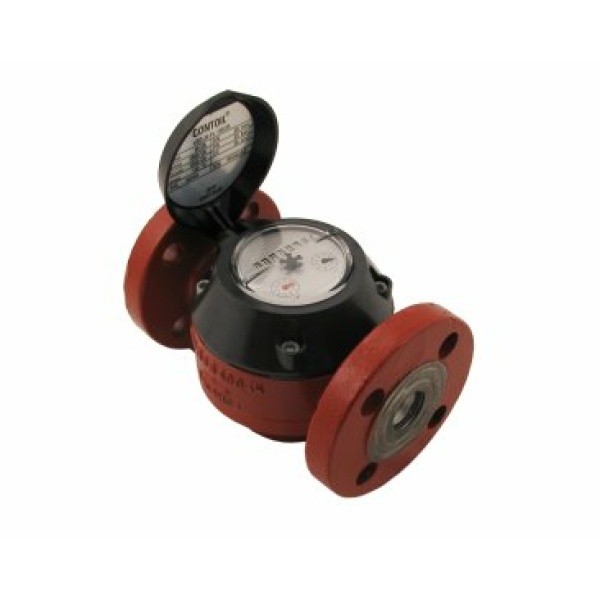

VZO 20 Contoil Oil Meter – (30-1000 Max 1500 litre/hr)
Mechanical Totaliser (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
20mm Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 91903
Max Temp 130C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 20 FL 130/25-IN0,01
CONTOIL® oil meter VZO 20 FL 130/25-IN 0.01
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
Connection for flanges: DN 20 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1…20 mPa.s): 30…1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.1 l
Registration capacity: 10 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5…15 V DC, signal at 8 V DC < 1 mA / > 3 mA
Pulse value: 0.01 l
