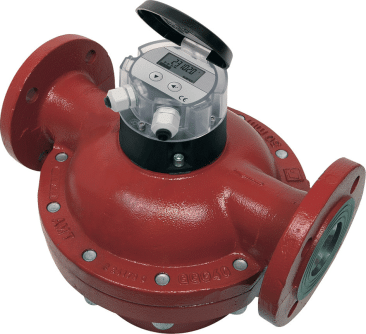

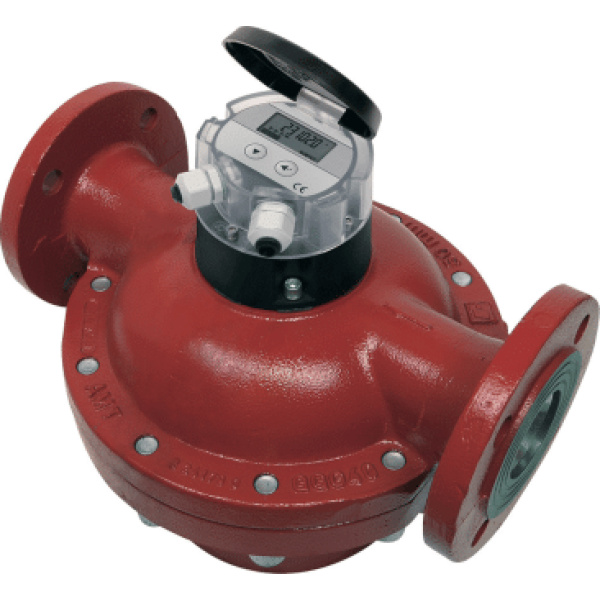

VZFA II 50 Contoil Oil Meter – (750-20,000 Max 30,000 litre/hr)

Specification

VZFA II 50 FL 180/25
CONTOIL^® flow meter for mineral oil.
Electronic counter with display

Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 of resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter:                  DN 50mm
Connection flange:                 DN 50
Nominal pressure:                  PN 25bar
Installation length:                  350mm
Installation position:               horiz / vert
Temperature, max.:                 180°C
Measuring range:                    750…30000l/h
Max. continuous flow:            20000l/h
Max. deviation:                      ±0.5% of value
Repeatability:                         ±0.2%
Registration capacity:             100Mio
LCD display:                          8 positions, 8mm high
Outputs:                                1 analog and 2 digital
Analog:                                  4…20mA
Digital                                    Pulse, Frequency, Logic
Nominal voltage:                    24V DC
Power supply via 4…20mA:    6…30V DC
Protection class:                    IP66/IP68/IP69
Ambient temperature:             -25…+70°C
