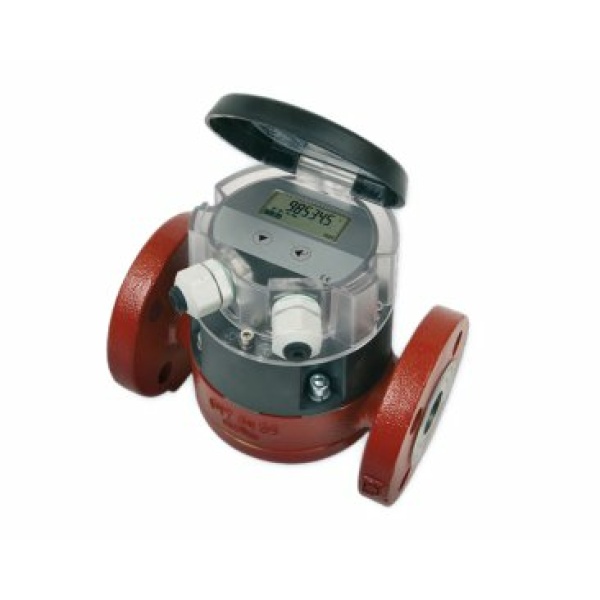

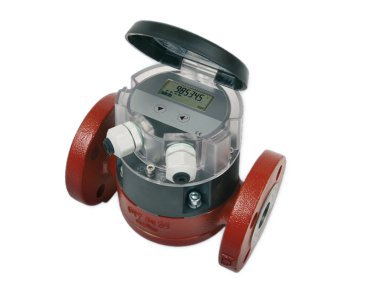

VZFA II 20 Contoil Oil Meter – (40-1000 Max 1500 litre/hr)

Specification

VZFA II 20 FL 130/25
CONTOIL® flow meter for mineral oil.
Electronic counter with display

Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 of resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 20mm
Connection flange: DN 20
Nominal pressure: PN 25bar
Installation length: 165mm
Installation position: horiz / vert
Temperature, max.: 130°C
Measuring range: 40…1500l/h
Max. continuous flow: 1000l/h
Max. deviation: ±0.5% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4…20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4…20mA: 6…30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25…+70°C
