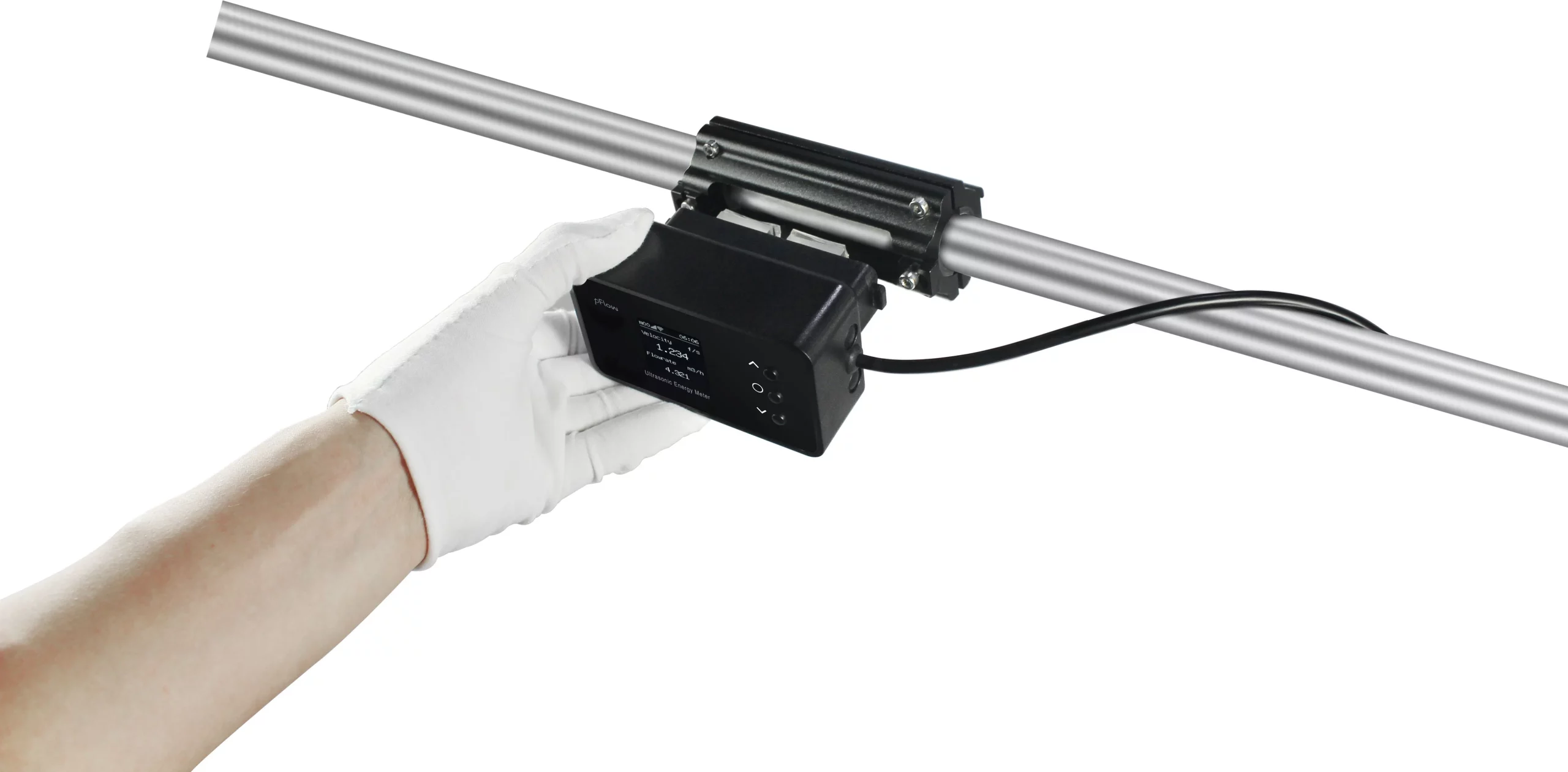

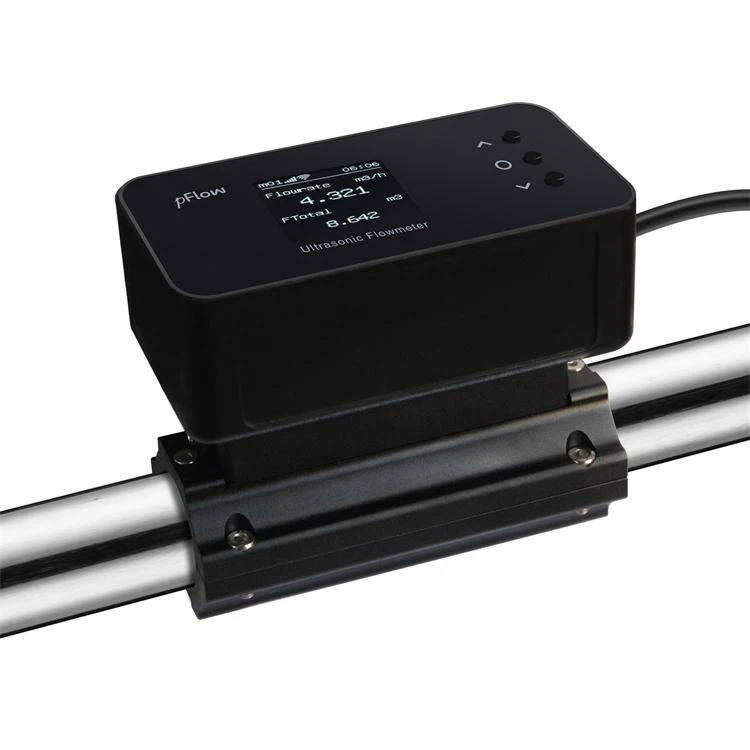

F2 ultrasone flowmeter realiseert naadloze integratie door contactloze meting. F2 Combineert technologisch geavanceerde meettechnologie met eenvoudige installatie, indrukwekkende veelzijdigheid en minimaal onderhoud. De flowmeter is geschikt voor alle maten van DN20 tot DN80 en wordt niet beïnvloed door het vloeibare medium, het leidingmateriaal en de installatie locatie.
Specifications
| Performance Index | |
| Flow Range | (0.03～5.0) m/s |
| Accuracy | Valued ±2% |
| Repeatability | 0.40% |
| Pipe Diameter Range (Optional) | DN20～DN80 |
| Measuring Medium | Water |
| Pipe Material (Optional) | Carbon steel, stainless steel, copper, PVC |
| Function Index | |
| Communication Interface | RS485 communication interface, support Fuji protocol and Modbus protocol |
| WIFI | Frequency range：2.412~2.484GHz |
| Transmitting power: 802.11b 16±2 dBm | |
| 802.11n 13±2 dBm | |
| 802.11g14±2 dBm | |
| Working temperature：-20~85℃ | |
| Theoretically, it can reach 40m transmission distance in an open environment | |
| Power Supply | 10～36VDC/500mA |
| Keyboard | 3touch keys |
| Display | 128×128 OLED |
| Temperature | Transmitter installation ambient temperature：-10℃～50℃ |
| Sensor measurement medium temperature： 0℃～60℃ | |
| Humidity | RH: 0～99%，no condensation |
| IP | IP54 |
| Working Pressure | 1.6MPa |
| Physical Characteristics | |
| Transmitter | All-in-one |
| Sensor | Clamp-on |
| Cable | φ5, 6 core electric cable, standard length：2m |
