Weather station for wind speed, direction, precipitation, light, twilight, pressure, temp, RH / WSC11

Compact weather station, WSC-11, Wind, Precipitation, Baro pressure, Lux, Global radiation, %RV, and Temp., digita

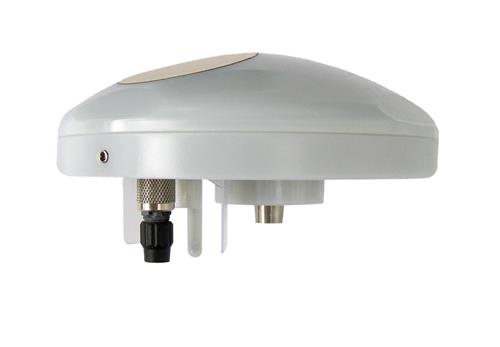

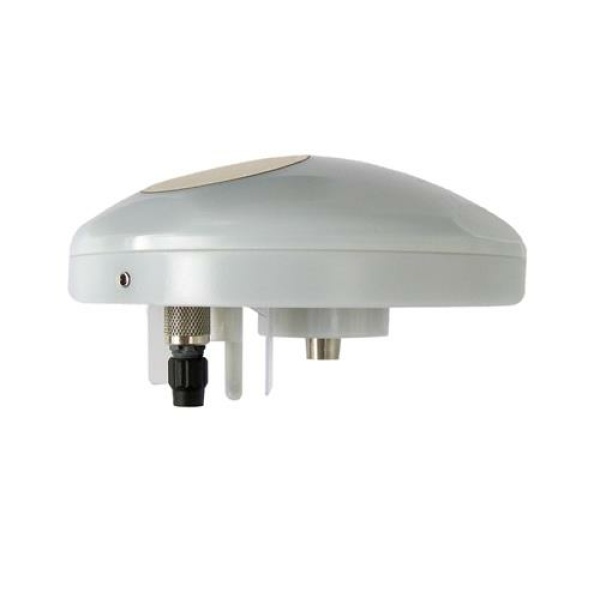

The WSC11 is a compact, low-cost complete meteorological station.

The station measures: Wind speed and direction, Relative humidity, Temperature, Barometric pressure, Precipitation, Light intensity, Dusk and global radiation.

The WSC11 is equipped with a digital output for ASCII and Modbus.

Measurement ranges:

Specifications:

WSC11, Low cost Meteo Station with GPS
type : 4.9056.10.001
wind speed
measuring range : 0 - 40 m/s
resolution ± 5%
wind direction
measuring range : 1 ... 360°
accuracy : ± 10°
precipitation detection
measuring range : 0 / 1 (yes or no)
barometric pressure
measuring range : 300 ... 1100 hPa
accuracy : ± 0.5 hPa @ 20°C
brightness (north, east, south and west)
measuring range : 0 - 150 kLux
spectral range : 475 - 650 nm
accuracy : ± 3%
twilight
measuring range : 0 - 500 Lux
accuracy : ± 10 lux
radiation
measuring range : 0 - 1300 W/m2
accuracy : ± 10%
temperature
measuring range : -30 to +60°C
accuracy : ± 1 K @ -5 ... 25°C (WS > 2 m/s)
relative humidity
measuring range : 0 - 100% RH
resolution : 0.1%
accuracy : ± 10 % RH
GPS receiver
data received : longitude, latitude and altitude station and date/time
output
type : RS485
mode/protocol : Modbus RTU
baud rate : standard Modbus address 1, standard 9600 baud
8 data bits - 1 stop bit - no parity
general
operating voltage : 18 - 30 Vdc, 18 - 28 Vac 50/60 Hz
consumption : < 300 mA @ 24 Vdc
electrical connection : 7 pin plug
mounting : Ø 25 mm mast
dimensions : Ø 130 x 70 mm

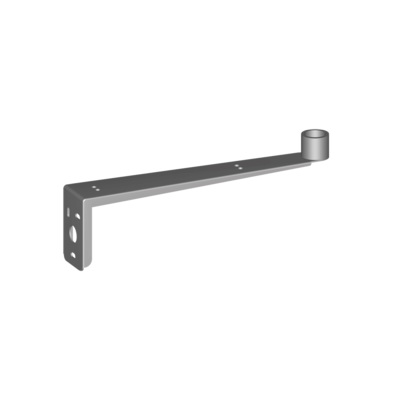

Incl. Thies wall mounting bracket type : 509564

For more options, please contact us.
