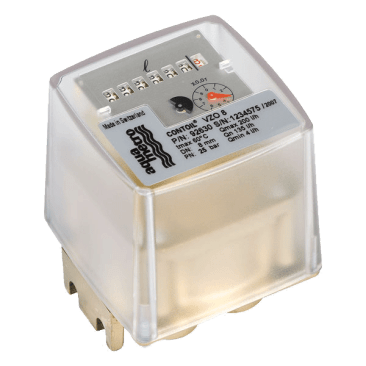

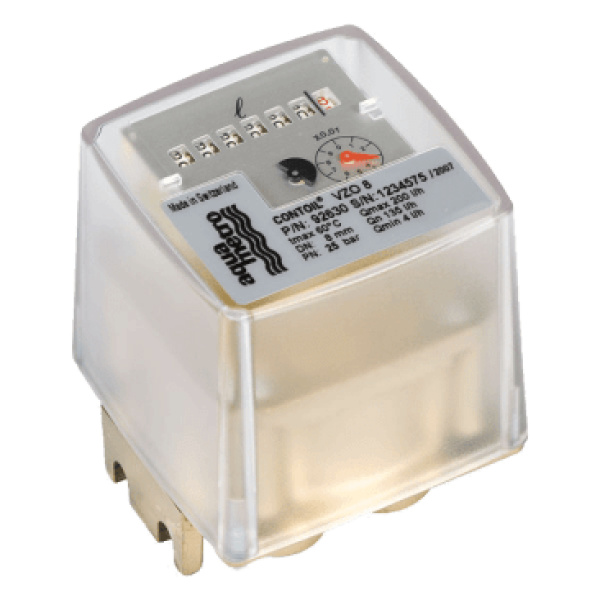

VZO 4 Aquametro Fuel / Oil Meter - (1-50 Max 80 litre/hr)

Specification:



CONTOIL^® Oil meters VZO 4

Ring piston meter for mineral oil, with roller counter

Nominal diameter: DN 4 mm

Connection (bottom): G1/8″ inside thread

Nominal pressure: PN 25 bar

Dimensions: 65 x 65 x 79 mm

Installation position: horizontal / vertical

Temperature, max: 60°C

Measuring range (at visc. 1...20 mPa.s): 1...80 l/h

Max. continuous flow Qn: 50 l/h

Max. measuring deviation: 2.0...80 l/h ± 1%

                                                         1...2 l/h +1/-2 %

Repeatability: ± 0.2%

Registration capacity: 100000 Litres
