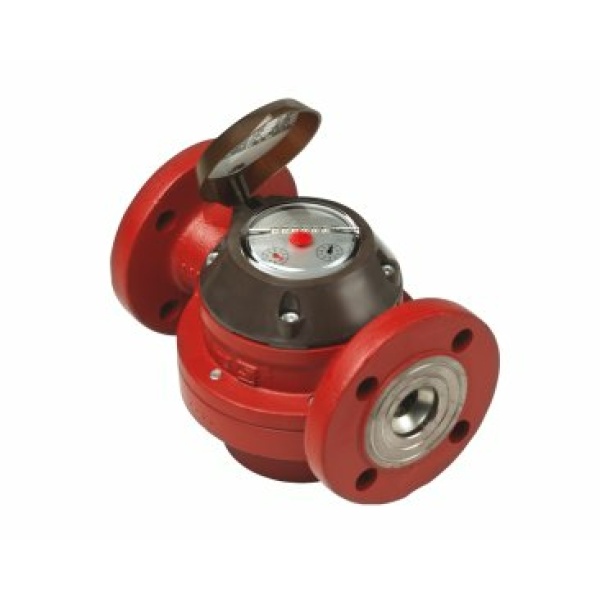

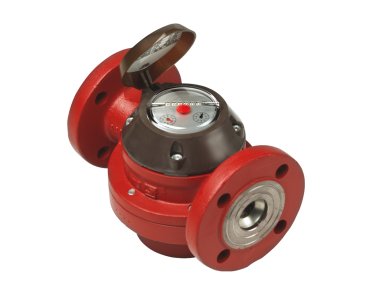

VZO 25 Aquametro Oil Meter - (75-2000 Max 3000 litre/hr) Pulse Output = 1 Litre/Pulse

VZO 25 Contoil Oil Meter - (75-2000 Max 3000 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch Pulse
25mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92268

Description
Downloads

VZO 25 Contoil Oil Meter - (75-2000 Max 3000 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 1 Litre/Pulse Reed Switch Pulse
25mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92268
Max Temp 180C
Max Pressure PN40 Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 25 FL 180/40-RV1

CONTOIL® oil meter VZO 25 FL 180/40-RV 1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 25 mm
Connection for flanges: DN 25 to DIN 2501
Nominal pressure: PN 40 bar
Installation length: 190 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1...20 mPa.s): 75...3000 l/h
Max. continuous flow Qn: 2000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l

With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 1 l
