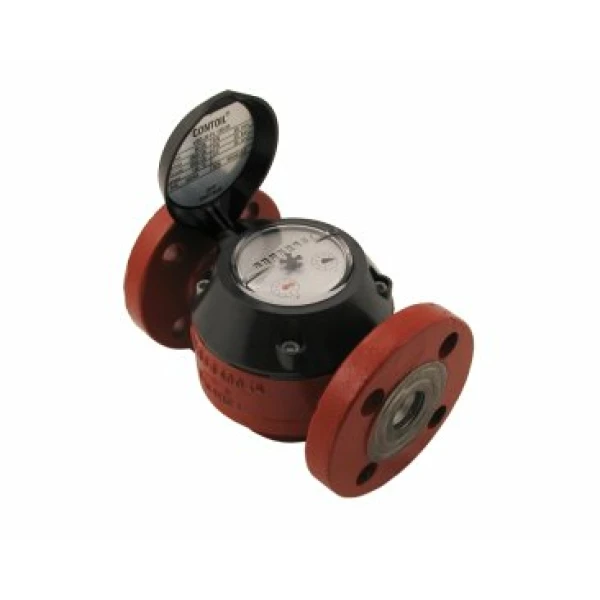

VZO 20 Aquametro Oil Meter - (30-1000 Max 1500 litre/hr)

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres) Non-reset
20mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92261

Description
Downloads

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres) Non-reset
20mm Flanged PN40 (JIS and ANSI no additional cost)
Product Code: 92261
Max Temp 180C
Max Pressure PN40
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser

Specification

VZO 20 FL 180/40

CONTOIL^® oil meter VZO 20 FL 180/40

Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 20 mm

Connection for flanges: DN 20 to DIN 2501

Nominal pressure: PN 40 bar

Installation length: 165 mm

Installation position: horizontal / vertical

Temperature, max: 180 °C

Measuring range (at visc. 1...20 mPa.s): 30...1500 l/h

Max. continuous flow Qn: 1000 l/h

Max. measuring deviation: ± 1% of measured value

Repeatability: ± 0.2%

Narrowest readable value: 0.1 l

Registration capacity: 10 Mio l
