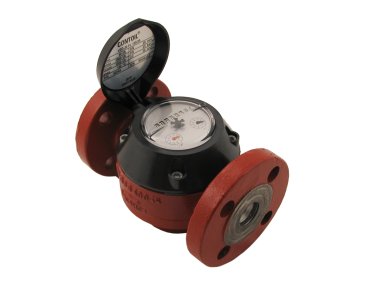

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres)
Non-reset 20mm
Flanged PN25 (JIS and ANSI no additional cost)
Product Code: 92258
Max Temp 180C
Max Pressure PN25
Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 20 FL 180/25
Â
CONTOIL® oil meter VZO 20 FL 180/25
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
Connection for flanges: DN 20 to DIN 2501
Nominal pressure: PN 25 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 180 °C
Measuring range (at visc. 1...20 mPa.s): 30...1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l
