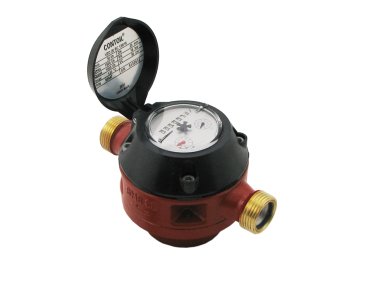

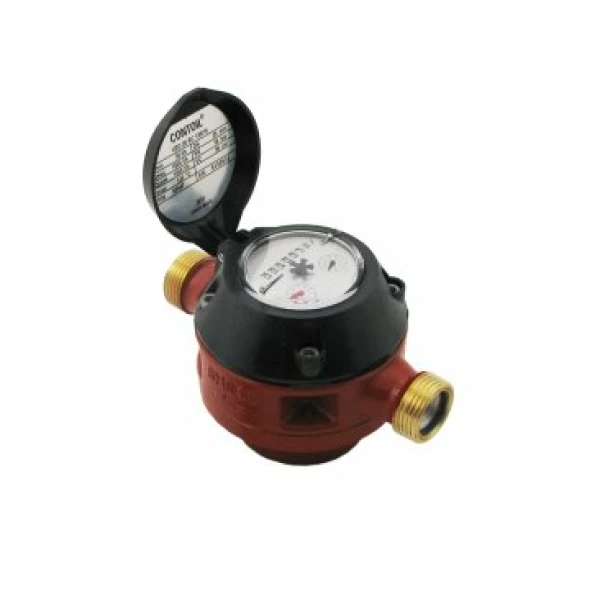

VZO 20 Contoil Oil Meter - (30-1000 Max 1500 litre/hr)
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.01 Litre/Pulse Inductive Pulse
Nominal diameter: 20mm (3/4″)
Optional fittings available
Product Code: 91902
Max Temp 130C
Max Pressure 16 bar Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Product Code: 91902
Max Temp 130C
Max Pressure 16 bar Positive Displacement / Low Pressure Drop Design
Accuracy 1% of actual value
8 Digit Totaliser
Specification
VZO 20 RC 130/16-IN0.01
Â
CONTOIL® oil meter VZO 20 RC 130/16-IN 0.01
Ring piston meter for mineral oil, with rotatable roller counter
Nominal diameter: DN 20 mm
With threaded ends 1" (for couplings 3/4")
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 30...1500 l/h
Max. continuous flow Qn: 1000 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Narrowest readable value: 0.1 l
Registration capacity: 10 Mio l
With built-on inductive IN pulser as per DIN 19234
Supply 5...15 V DC, signal at 8 V DC 3 mA
Pulse value: 0.01 l
