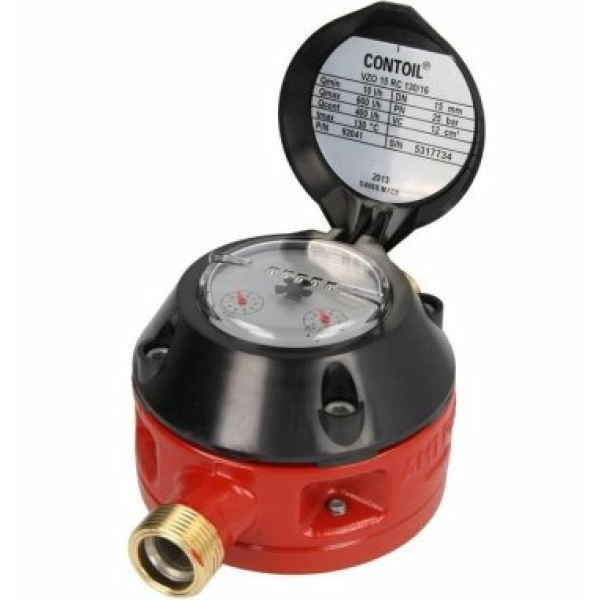

VZO 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 0.1 Litre/Pulse Reed Switch

Name: VZO 15 Aquametro Oil Meter - (10-400 Max 600 litre/hr) Pulse Output = 0.1 Litre/Pulse Reed Switch
SKU: VZO 15 RC 130/16-RV 0.1
Availability: BackOrder

VZO 15 Contoil Oil Meter

Flow: 10-400 litre/hr Max 600 litre/hr
Pulse Output = 0.1 Litre/Pulse Reed Switch

Nominal diameter: 15mm (1/2″)

Optional fittings available
Product Code: 92042

VZ0 15 Contoil Oil Meter - (10-400 Max 600 litre/hr)
Ring Piston or Oscillating Piston Type
Mechanical Totalizer (Litres) Non-reset
Pulse Output = 0.1 Litre/Pulse Reed Switch

Nominal diameter: 15mm (1/2″)

Optional fittings available
Max Temp 130°C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy ± 1% of actual value
8 Digit Totaliser

Specification

VZO 15 RC 130/16-RV0.1

CONTOIL® oil meter VZO 15 RC 130/16-RV 0.1
Ring piston meter for mineral oil, with rotatable roller counter

Nominal diameter: DN 15 mm
With threaded ends 3/4" (for couplings 1/2")
Nominal pressure: PN 16 bar
Installation length: 165 mm
Installation position: horizontal / vertical
Temperature, max: 130 °C
Measuring range (at visc. 1...20 mPa.s): 10...600 l/h
Max. continuous flow Qn: 400 l/h
Max. measuring deviation: ± 1% of measured value
Repeatability: ± 0.2%
Smallest readable value: 0.01 l
Registration capacity: 1 Mio l

With RV Reed pulser integrated in register unit
Contact load max: 48 V AC/DC, 50 mA, 2 W
Pulse value: 0.1 l
