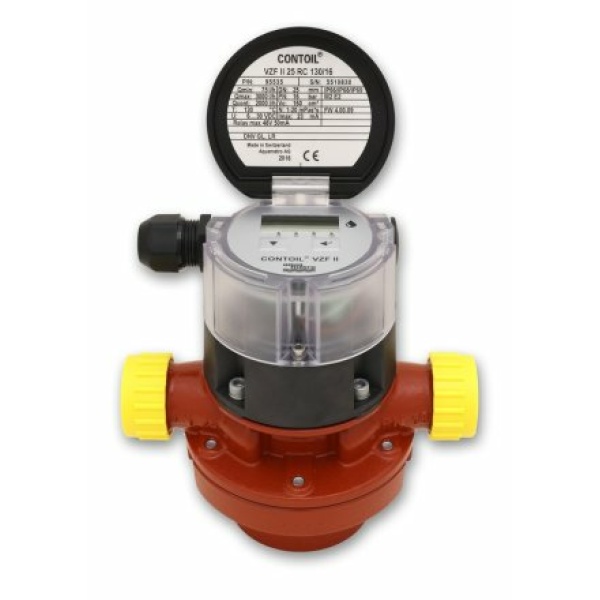

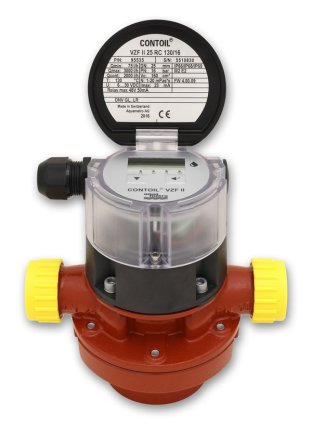

VZFA II 15 Contoil Oil Meter - (20-400 Max 600 litre/hr)

Name: VZFA II 15 Contoil Oil Meter - (20-400 Max 600 litre/hr)
SKU: VZFA II 15 RC 130/16
Availability: InStock

VZFA II 15 Contoil Oil Meter

Flow: 20-400 litre/hr Max 600 litre/hr
High Accuraccy Model
Digital Display (Rate/Total/Temp/Mass)

Nominal diameter: 15mm (1/2″)

Optional fittings available

Product Code:

Product Documents

Downloads

Marine Approval

Materials Cert

Clear

VZFA II 15 Contoil Oil Meter - (20-400 Max 600 litre/hr)
Digital Display (Rate/Total/Temp/Mass)

Nominal diameter: 15mm (1/2″)

Optional fittings available
Product Code:
Max Temp 130C
Max Pressure 16 bar
Positive Displacement / Low Pressure Drop Design
Accuracy 0.5% of actual value 8 Digit Totaliser 4-20mA & Pulse Output

Specification

VZFA II 15 RC 130/16
CONTOIL® flow meter for mineral oil.
Electronic counter with display

Characteristics:
Display of total volume, resettable
trip volume (up to 8 totalizers,
4 or resettable), flow rate,
temperature, mass and normalized
volume in m3, liters, US gallons or
tons, kilograms and pounds.
Programmable outputs.
Nominal diameter: DN 15mm
Threaded connection 3/4"
Couplings for pipe 1/2"
Nominal pressure: PN 16bar
Installation length: 165mm
Installation position: horiz / vert
Temperature, max: 130°C
Measuring range: 20...600l/h
Max. continuous flow: 400l/h
Max. deviation: ±0.5% of value
Repeatability: ±0.2%
Registration capacity: 100Mio
LCD display: 8 positions, 8mm high
Outputs: 1 analog and 2 digital
Analog: 4...20mA
Digital Pulse, Frequency, Logic
Nominal voltage: 24V DC
Power supply via 4...20mA: 6...30V DC
Protection class: IP66/IP68/IP69
Ambient temperature: -25...+70°C

Marine Approval	Without Marine Certification ~ Standard, Germanic Lloyd's 962951 (+ £250.80)
Materials Cert	Without Materials Cert ~ Standard, DIN 2.1 Cert Supplied (+ £84.70), DIN 2.2 Cert Supplied (+ £84.70), DIN 3.1 Cert Supplied (+ £215.60)
