Portasonic® Plus with data logger (4 MB internal storage) is a portable, clamp-on ultrasonic flow meter for measuring the flow rate of clean fluids in pipelines.
The Portasonic® Plus uses a customizable, pre-programmed database so it can work with a wide variety of tube materials and fluid types as a highly versatile monitoring solution that can be customized for specific applications.
Portasonic® PLUS provides measurements to within ±0.5% of actual flow. This precision is reinforced by several features:
- Customizable, pre-programmed database - Featuring 19+ fluid types and 23+ piping materials.
- Integrated ultrasonic thickness gauge - To monitor pipe wall thickness and ensure it meets operational safety requirements.
- Built-in signal oscilloscope - For sensor diagnostics and verification of the measurement process.
- 3 measurement methods - To allow the most appropriate application to different pipe sizes. See brochure for details.
- Two sensor options - Suitable for different pipe diameters, waterproof versions are also available.
- Non-invasive - Flow measurement from outside a pipe with external sensors that can be clamped in place
- Accuracy - Device calibration performed in an ISO 17025-certified laboratory with traceable results, accuracy of +/- 1% of reading at speeds> 0.2 m/s.
- Reliable long-term and battery life, lightweight, compact.

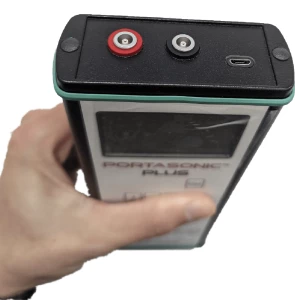

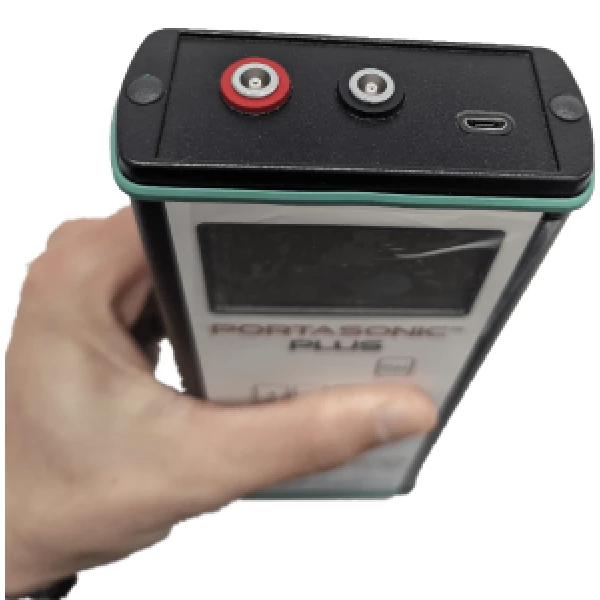

- New waterproof cover to prevent water from entering the charging port.
- Datalogging - Stores up to 2000 data lines. This data can be exported to the computer using an RS232 cable.
- 3 test methods - Provides 3 different modes of operation, so can be used in different tube sizes.
- Operating principles; V-method, W-method or Z-method which refers to the positioning of the transducer.
|
Technical Specification
|
|
|---|
| Dimensions | 220 x 85 x 22 mm (L x W x D) |
| Weight unit | 434 g (with batteries) |
| Pipe diameter range |
|
| Accuracy | ±0.5% of actual flow rate |
| Solution | 0.25 mm/sec |
| Repeatability | 0.15% of the measured value |
| Flow rate range | 0.01 m/s - 25 m/s |
| Lower the ratio | 1/100 |
| Measurement speed | Standard 1 Hz |
| Units of measurement | Flow rate, volumetric flow rate, mass flow rate, energy flow rate (heat quantity), volume, mass, energy |

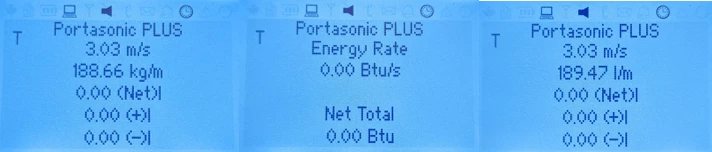

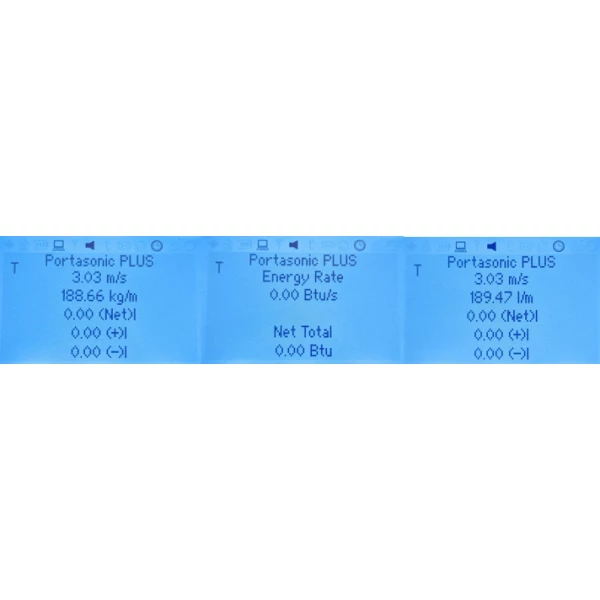

| Display | 128 x 68 backlit LCD screen |
| Additional features |
|
| Power supply | 1x 9V PP3 battery, up to 12 hours of continuous use
24/7 power supply via micro-USB port |
| Operating temperature | Main unit: -10°C to +65°C (14°F to 149°F)
Sensors: -20°C to +150° C (-4°F to +302°F) |
| Sensor dimensions | Standard Model No. DM10: 40 mm (L) x 20 mm (W) x 25 mm (D)
Large model No. DS10: 60 mm (L) x 30 mm (W) x 35 mm (D) |
| Sensor connectivity | 1.5 m BNC coaxial cable (longer lengths available upon request) |
| IP value | Main unit: IP 65 enclosure
Sensors: IP 66 (IP68 variant available) |
| Certifications and approvals | UKCA, CE, Coltraco Is ISO 9001:2015 and ISO 14001 registered
Option to include ISO 17025 calibration certification |
| Warranty | Main unit - 3-year warranty
Sensor - 1 year warranty Technical support - Device life |
