TM605 Compact ultrasonic flowmeter for seawater and oil

Compact, clampable ultrasonic flowmeters.

Product Description

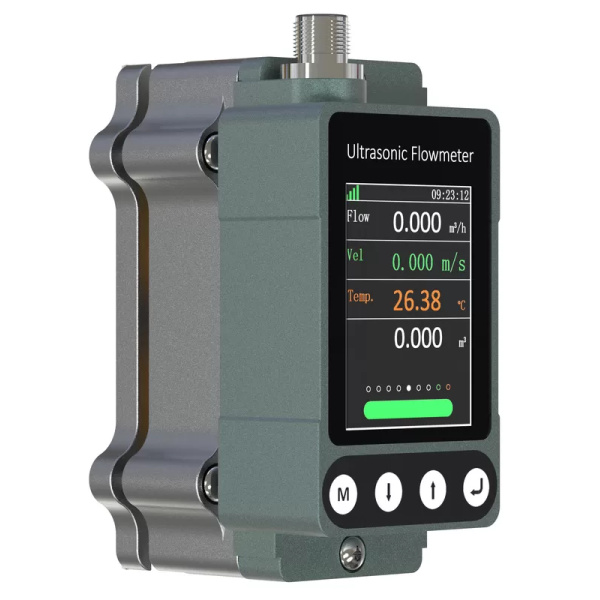

TM605 is an integrated ultrasonic flowmeter specially designed to meet small-medium pipe diameters. It is very simple and easy to set up and install. TM605 developed and adopted the ultrasonic principle of transit-time difference method and sends and receives ultrasonic signals through the sensor. When the ultrasonic signal is sent and received through the flowing fluid, there will be one difference value between upstream and downstream, which can be used to calculate the flow and velocity.

Benefit & Feature

• Unique structural design : The TM605 uses a circular magnetic steel design in the structure, which can be snapped and locked. It takes only 2-3 minutes from installation to measurement.
• Colorful display : The TM605 uses an IPS LCD display, which easily displays data even in low-light environments.
• Flow curve/column graph : The TM605 is equipped with a column chart for total flow/temperature and a real-time flow curve chart, allowing users to read flow changes.
• Temperature display : The bottom of the display unit has a temperature probe. This can measure the realtimetric temperature of the pipe wall during fluid flow and is displayed in the flow/velocity data interface.
• Simple menu option : The user can set and easily change various parameters through four keys. In addition, the "Up key" and "Down key" can randomly switch up the display interface. The carousel points below the display can also be switched with the "Up key" and "Down key," and each interface displays different information.
• Compatible with various materials and liquids : TM605 can almost meet the measurement of various clean liquids and pipe materials. Through the menu options, metal and plastic pipes can be set, as well as water and oil.

The Pipe Size Range and Flow Range Reference Table
