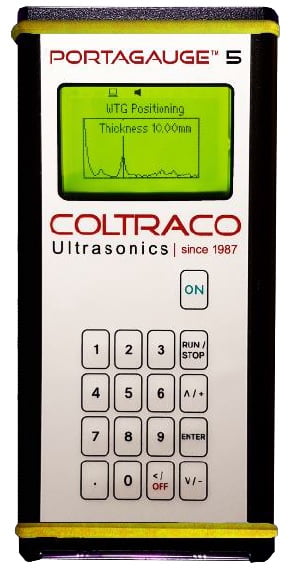

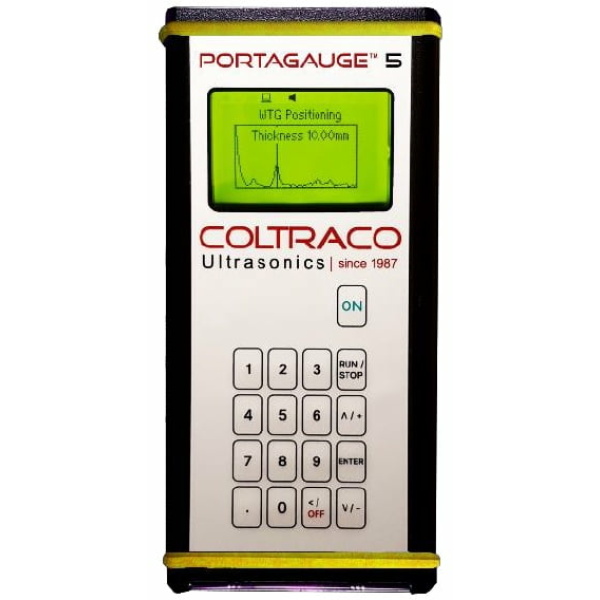

The PORTAGAUGE® 5 is a multi-echo ultrasonic thickness gauge for measuring thicknesses of various metals and plastics, ignores any coating up to 20 mm thick.

• MULTIPLE ECHO: Ignores paint coatings up to 20 mm thick, giving you the true metal thickness
• A-SCAN FUNCTIONALITY: To observe the material condition and verify the correct return-back wall echo
• OSCILLOSCOOPTRACE: To help perform proper measurement
• SUITABLE FOR ONSHORE AND OFFSHORE: Meets the requirements of classification societies for marine thickness measurement inspection equipment
• BUILT-IN MATERIALS DATABASE: 13 different materials pre-loaded into the unit, including different types of metals and plastics
• CUSTOMIZABLE MATERIALS: Sound speed input is available, allowing custom materials to be tested
• LCD backlight: The display is backlit, allowing you to work in dark areas with poor visibility

Key specifications:

1. Measuring range: 1.5 mm - 100.0 mm
2. Different frequency sensors available: 2.25 MHz, 2.5 MHz, 5 MHz, 7 MHz
3. Multiple echo technology ignores paint layers up to 20 mm thick

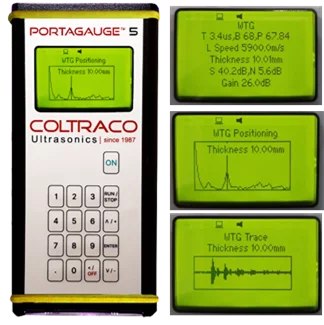

4. A-scan functionality To observe the condition of the material and verify the correct echo of the back wall
5. Accurate down to 0.01 mm
6. Available in metric and imperial units
7. Operating temperature range main unit: -10°C to +65°C
8. IP65- housing
9. Battery life Up to 12 hours of continuous use on a standard 9V PP3 battery for easy replacement
10. Works on a wide variety of metals and plastics , a built-in database of 13 different materials
11. Sound speed input Allowing custom materials to be tested
12. LCD backlight To work in dark areas with poor visibility
13. Meets the requirements of classification societies For inspection equipment for thickness measurement at sea

Reasons to choose Portagauge® 5

1. Multiple echo ignores paint layers up to 20 mm thick
2. A built-in materials database with 13 different materials for immediate testing on a wide range of materials, adjustable via manual input of sound speed
3. A-scan functionality and oscilloscope tracking function built in to observe the material condition and verify the proper return back wall echo
4. Meets the requirements of classification societies For inspection equipment for thickness measurement at sea
5. Certificates: IACS: Specific Requirements from IACS Procedural Requirements PR No. 19 and No.77, DNVGL: DNVGL-CG-028 - Section 3 - Basic Requirements.

How it works:

• Via user manual, brochure, YouTube videos and phone/skype/email with the SENSORS.EN Support team
• We make safety products for testing level, seal, thickness, flow and acoustics
• You get a 3-year warranty on the main unit, a 1-year warranty on the sensor and lifetime support
• Coltraco operates in 120 countries around the world and has a global network to support you
• We help you realize the Safesite® or Safeship®: to improve the safety of your people, assets and infrastructure while saving time and costs.
