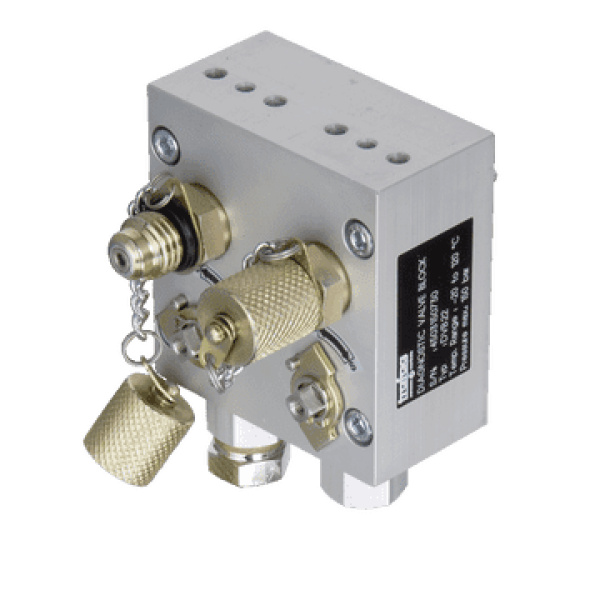

Trafag test valve DVB

Number of inputs

Number of outputs

Pressure connection

Clear

Product code DVB
Designation Diagnostic Valve Block
Product category Accessories
Measuring range -0.8 ... 100 bar
Ambient temperature -20 ° C ... + 120 ° C

Capabilities and types:

DVB11 / 1 P-in, 1 test connection, 1 P-out
DVB12 / 2 P-in, 2 test connection, 2 P-out
DVB13 / 3 P-in, 3 test connection, 3 P-out
DVB14 / 4 P-in, 4 test connection, 4 P-out
DVB15 / 5 P-in, 5 test connection, 5 P-out
DVB22 / 1 P-in, 2 test connection, 2 P-out
DVB23 / 1 P-in, 3 test connection, 3 P-out
DVB24 / 1 P-in, 4 test connection, 4 P-out
DVB25 / 1 P-in, 5 test connection, 5 P-out
DVB32 / 1 P-in, 1 test connection, 2 P-out
DVB33 / 1 P-in, 1 test connection, 3 P-out
DVB34 / 1 P-in, 1 test connection, 4 P-out
DVB35 / 1 P-in, 1 test connection, 5 P-out

Weight	N/A
Number of inputs	1, 2
Number of outputs	1, 2, 3
Pressure connection	G 1/4 female
