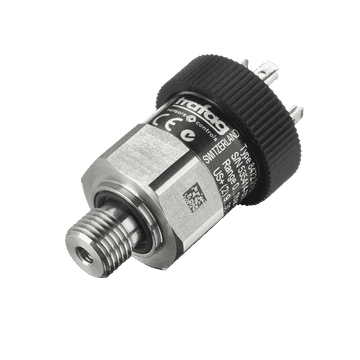

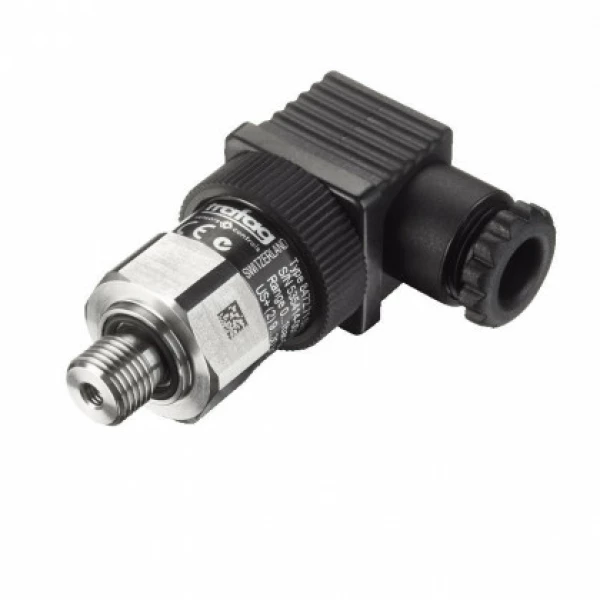

Trafag Railway Pressure Transmitter EPR 8293 / Range: 0 ...10 Bar

Type: 8293.77.2517.04.19.56
Range: 0 ... 10 bar
Output: 4-20 mA
Dielectric strength: 710 VDC, complies with EN 50155 (Railways)
Excellent long-term stability
High resistance to overpressure
Fully welded steel sensor system without additional seals
Compact design
For railroads and railcars

The EPR pressure transmitter is specially designed for the high demands of the railroad industry and offers reliable and accurate pressure measurement over a wide temperature range. Its excellent long-term stability is based on Trafag's leading thin-film-on-steel sensor technology.

Weight	1 kg
Pressure range (Bar)	0 … 10, 0 … 100, 0 … 16, 0 … 25, 0 … 250, 0 … 4, 0 … 40, 0 … 400, 0 … 6, 0 … 60, 0 … 600
Output	0 ... 10 VDC, 4 ... 20 mA
Overpressure max.	1000, 12, 120, 1500, 18, 30, 300, 48, 75, 750, 180
Nutrition	15 ... 32, 9 ...32
