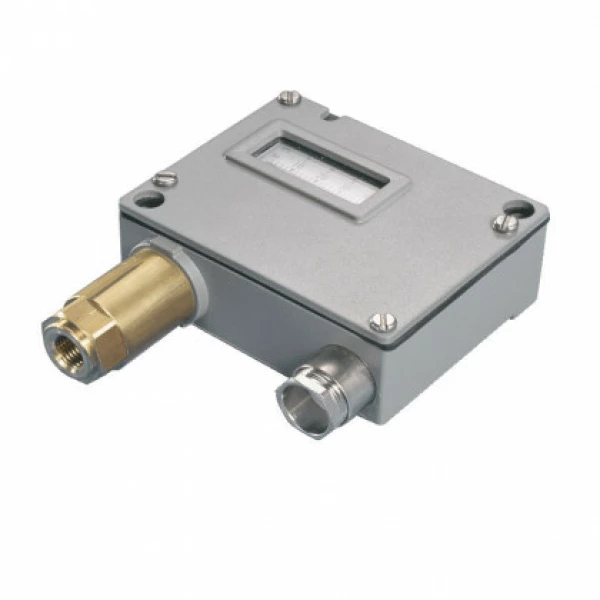

Trafag pressure switch P16 (900.2379.905)

Robust bellows pressure switch 900 series

• Range : 0 ... 16
• Max overpressure: 24
• Measuring element: bellows
• Output : microswitch SPDT
• Pressure connection : G1/4 BSP female
• Housing : Alu. epoxy coating, IP65
• Plug : Pg 13.5
• Sensor temp [°C] : to +150
• Ship Approval: ABS, BV, DNV, GL, KRS, LRS, PRS, RINA
• Pressure setting by display
• High accuracy

Known by the item numbers:

• 900.2379.905
• 900 2379 905
• 9002379905
