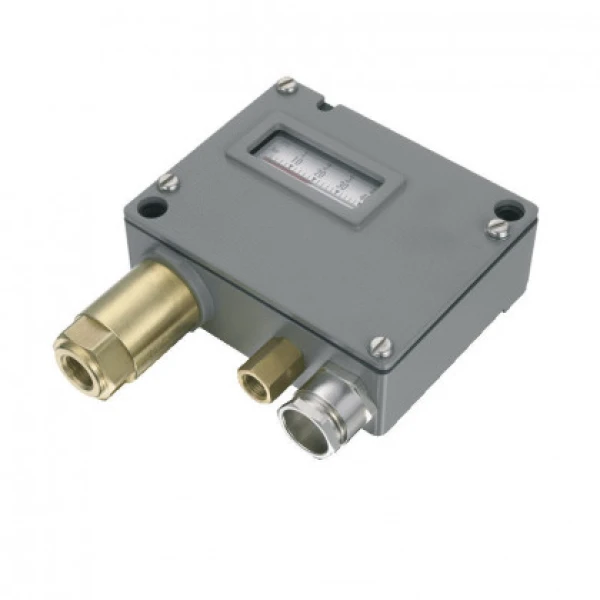

Trafag Pressure switches PVF1.5 (940.2372.900)

Pressure switch with large and small adjustable switching differential, bellows sensor, high accuracy, calibrated for decreasing pressure.

• Measuring range [bar] : -0.9 ... 1.5
• Measuring element : bellows
• Output : microswitch SPDT
• Switching differential : 0.06 ... 0.2
• Pressure connection : G1/4 BSP internal
• Housing : Alu epoxy coated, IP65
• Plug : Pg 13.5
• Sensor temp [°C] : to +150
• Ship approvals : ABS, BV, DNV, GL, KRS, LRS, PRS, RINA

Known by item numbers:

• 940 2372 900
• 9402372900
• 940.2372.900
