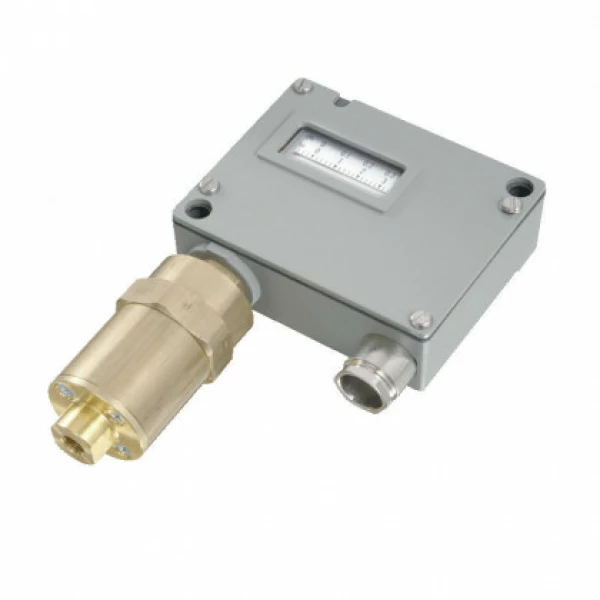

Trafag Differential pressure switches PD/ 920 series

Technical data:

• Applications: Shipbuilding, Engine building, Railway, Machine tools, Hydraulics
• Measurement principle:Bellow
• Approval / conformity: ABS, BV, CCS, DNV, GL, KRS, LRS, RINA, EN60730-1 / EN60730-2-6: Typ 2.B.H
• Vibration switch 23/26: 5 ... 25 Hz: ± 1.6 mm, 25 ... 100 Hz: 4 g
• Pressure connections: G1/4 "f, G1/8 "f, G1/2 "outside
• Media temperature: -40 ° C ... + 150 ° C
• Shock: 50 g / 11 ms
• Electrical connections: Screw terminal
• Ambient temperature: -25 ° C ... + 70 ° C
• Sensor: datasheet
• Protection: IP65
• Output signal: 1 Floating changeover contact (SPDT)
• Measuring range: -1 ... 6 to -1 ... 18 bar
