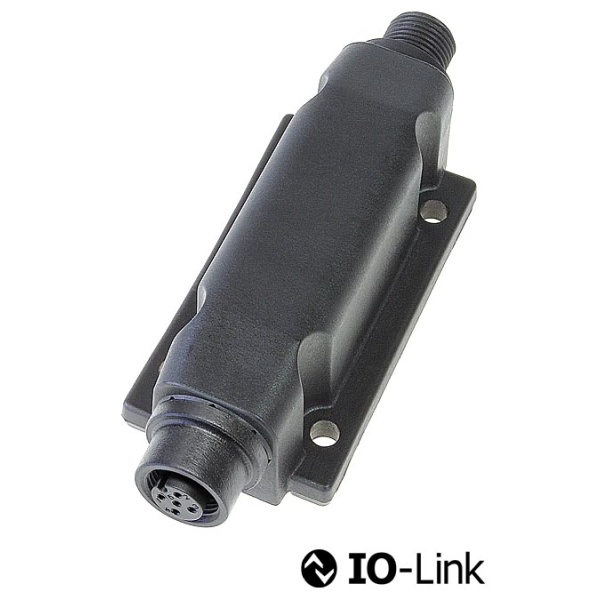

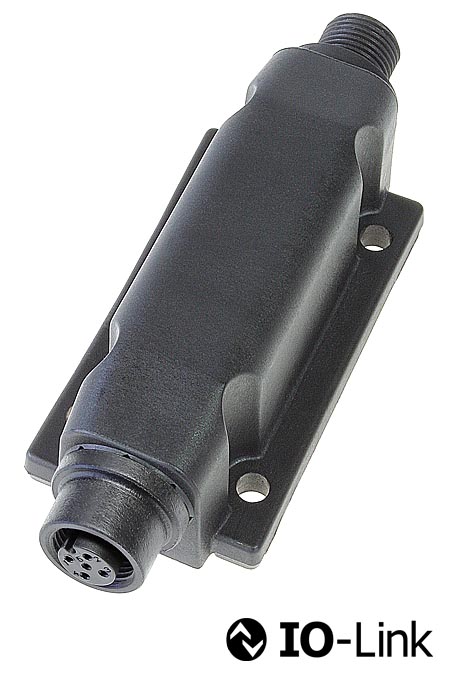

Strain gauge amplifier IO-Link | MISG-IO

Description
Downloads

Input: 1 strain gauge full bridge
Bridge resistance: minimum 350 Ohm
Measuring range: freely adjustable in the range -32000 ... +32000
Output: IO-Link
Resolution: 16 bit
DMS power supply: 3 VDC
Total error: 0.05% of range
Electrical connection: multiple plugs, cables
Housing: PBT GF30 black
Dimensions: 72x28x35 mm (without electrical connection)
Degree of protection: at least IP65
