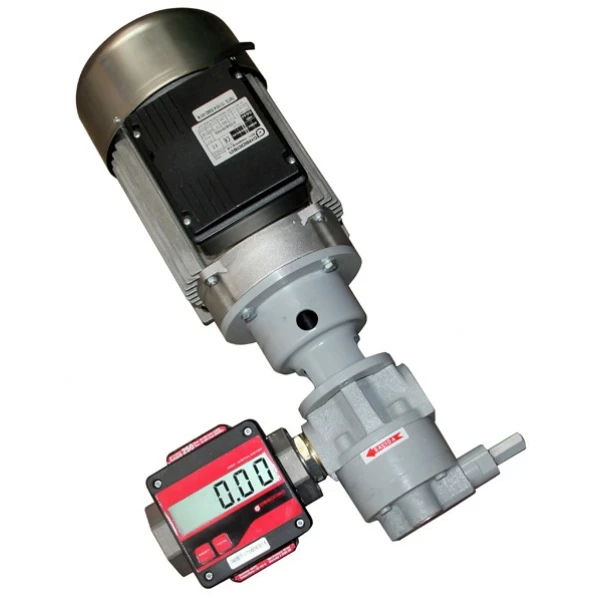

SEA-65 230VAC - Pump with litre meter

This EA-65 self-priming gear pump is suitable for transferring large quantities of lubricant through non-restrictive diameter pipes.

This pump is suitable for use in agriculture, construction, industry, ...

Suction height capacity of 2.5 m, both above-ground and underground tanks.

Technical data:

• It is suitable for medium/low density lubricant transfer.
• Suction power: 2.5 m - Delivery: 40 m
• Flow rate: 50-55 l/min with SAE-10W/30
• Motor: 2.2 kW, self-ventilated, 230 VAC, single-phase - IP-55 protection
• Thermal protector
• Consumption: 10-15 A
• 1,400 rpm
• Pressure: 6-8 bar (adjustable via bypass valve)
• Suction/pressure pump diameter: 1 1/4″ GAS (BSP)
