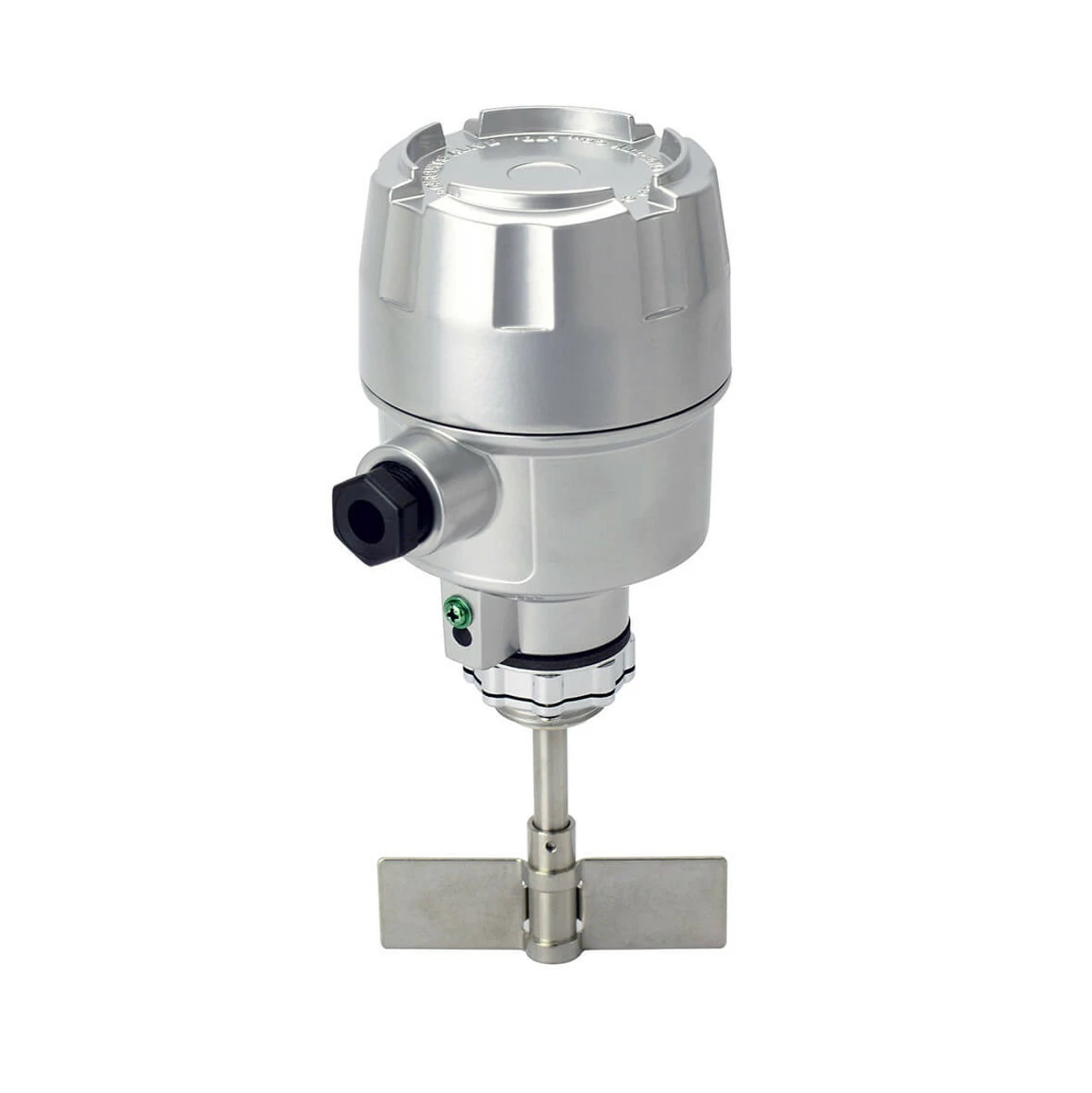

SE110 level switch with rotary paddle 220VAC

Output: SPDT: 250VAC/5A
Power supply: 220 V AC
Probe length: 100 mm
Material density: 0.5 g/cm3
Type of paddle: 100 x 30 mm (WxH)
Operating temperature: -20 ÷ 70°C
Process connection: BSP male thread
Rotating speed: 1 rpm
Insulation test voltage: 2.5 kV
Housing material: aluminum
Probe material: st. steel
Connection size: 1″
Protection Class: IP65

The operating principle of the SE series is simple. This level switch SE series is placed through the wall at the highest or lowest level of a (bulk) tanks, silos, containers or reservoir. During normal operation (no material present), a synchronous motor rotates the paddle at 1 RPM. When the paddle is obstructed by material, the motor will stall and cause the microswitch to switch.
