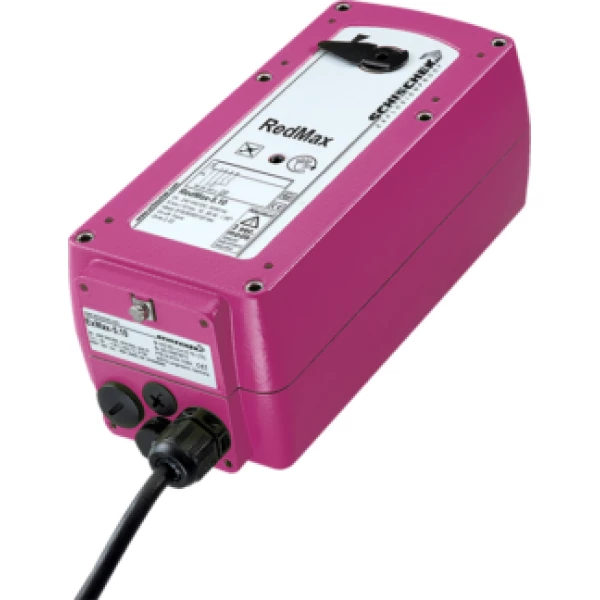

Schischek Spring return actuator 15 Nm REDMAX-15-SF1-VAS (S-size)

RedMax ATEX certified quarter turn actuators are used for such applications as automation of air dampers, fire and smoke dampers, volume control, and for ball valves, throttling valves and other quarter turn fixtures. Up to 5 different run times adjustable on-site. Robust aluminum housing, IP66, optional in stainless steel.

Models:

• RedMax- 8-F1 8 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off
• RedMax-15-F1 15 Nm 3/15/30/60/120 sec. ≤ 1 sec. On-off
• RedMax- 8-SF1 8 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off 2 x aux switches (5º/85º)
• RedMax-15-SF1 15 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off 2 x aux switches (5º/85º)
• RedMax-15-SF1-VAS 15 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off 2 x aux switches (5º/85º)
• RedMax- 8-BF1 8 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off 2 x aux switches (5º/85º) ExPro-TT connector
• RedMax-15-BF1 15 Nm 3/15/30/60/120 sec ≤ 1 sec. On-off 2 x aux switches (5º/85º) ExPro-TT connector
• RedMax- 5.10 / 5 Nm / 10 Nm 3/15/30/60/120 sec. On-off, 3-pos
• RedMax- 15.30 / 15 Nm / 30 Nm 3/15/30/60/120 sec. On-off, 3-pos
• RedMax- 5.10-S / 5 Nm / 10 Nm 3/15/30/60/120 sec. On-off, 3-pos 2 x aux switches (5º/85º)
• RedMax- 15.30-S / 15 Nm / 30 Nm 3/15/30/60/120 sec. On-off, 3-pos 2 x aux switches (5º/85º)
• RedMax- 5.10-Y / 5 Nm / 10 Nm 7.5/15/30/60/120 sec. 3-pos 0...10 VDC, 4...20 mA 0...10 VDC, 4...20 mA
• RedMax- 15.30-Y / 15 Nm / 30 Nm 7.5/15/30/60/120 sec. 3-pos 0...10 VDC, 4...20 mA 0...10 VDC, 4...20 mA
• RedMax- 5.10-F / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos
• RedMax- 15-F / 15 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos
• RedMax-5.10-SF / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º)
• RedMax- 15-SF / 15 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos 2 x aux switches(5º/85º)
• RedMax- 5.10-YF / 5 Nm/10 Nm 7.5/15/30/60/120 sec. 3 sec / 10 sec. 3-pos 0...10 VDC, 4...20 mA, 0...10 VDC, 4...20 mA
• RedMax- 15-YF / 15 Nm 7.5/15/30/60/120 sec. 3 sec / 10 sec. 3-pos 0...10 VDC, 4...20 mA, 0...10 VDC, 4...20 mA
• RedMax- 5.10-BF / 5 Nm/10 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º) ExPro-TT connector
• RedMax- 15-BF / 15 Nm 3/15/30/60/120 sec. 3 sec / 10 sec. On-off, 3-pos 2 x aux switches (5º/85º) ExPro-TT connector
