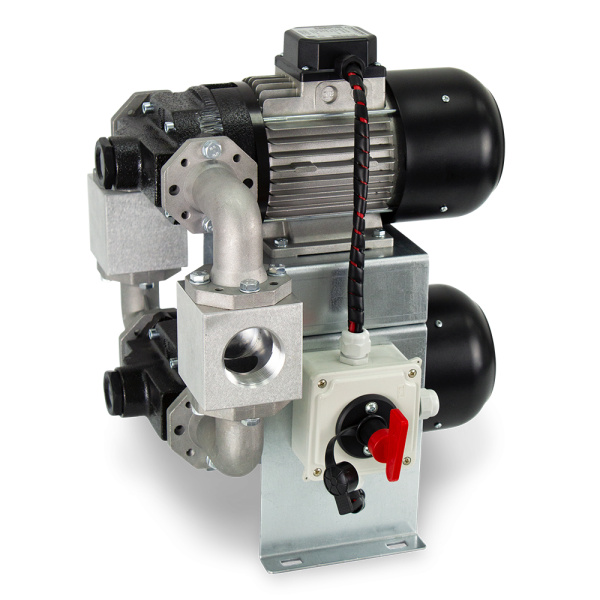

MONSTERPUMP-200 24 VDC Self-suction with vanes 0.74 kW - 200 l/min

SAMPLE PUMP-200 24 VDC | 000900000

Self-priming, self-priming pump with eccentric vanes
Composed of two pumps connected by a manifold (on request)
Suitable for transferring diesel fuel, at high flow rates, in areas where connection to 230 VAC or 110 VAC is not possible.

TECHNICAL CHARACTERISTICS

Flow rate: 200 l/min
Consumption: 30-47 A 24 VDC
Pressure: 1.4 bar
Motor: 2×0.37 kW 24 VDC, dustproof, self-ventilated
Tropical
Continuous operation
IP-55 protection
1,500 rpm
Equipped with recirculation bypass
Suction power: 2.7 m
Suction line suction: 5 m
Connection with M1 ½" thread (BSP). The manifold can be built to specific requirements on request.
Junction box with key switch
Anti-rust treatment
