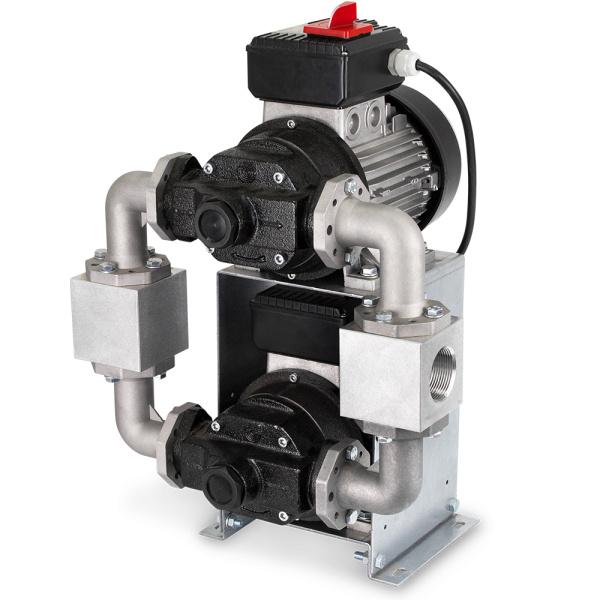

MONSTERPUMP-200 230 VAC Self-suction of vanes 2 kW - 210 l/min

• Self-priming, self-priming pump with eccentric vanes
• Composed of two pumps connected by a manifold (on request)

TECHNICAL CHARACTERISTICS

• Flow rate: 200 l/min
• Consumption: 7-12 A
• Pressure: 3 bar
• Motor: 2×1 kW 230 VAC, single-phase, self-ventilated
• Thermal protection
• S1 continuous operation
• IP-55 protection
• 1,500 rpm
• Equipped with recirculation bypass
• Suction power: 2.7 m - Delivery: 20 m
• Suction line suction: 5 m
• Connection with M1 ½" thread (BSP). The manifold can be built to specific requirements on request.
• Junction box with key switch
• Anti-rust treatment

Dimensions and weight (approx.):

• Dimensions: 400x350x550 mm (LxWxH)
• Weight: 44.5 kg

Optional

• Metal base plate cart with wheels
• Hoses and accessories
• Hose reel
