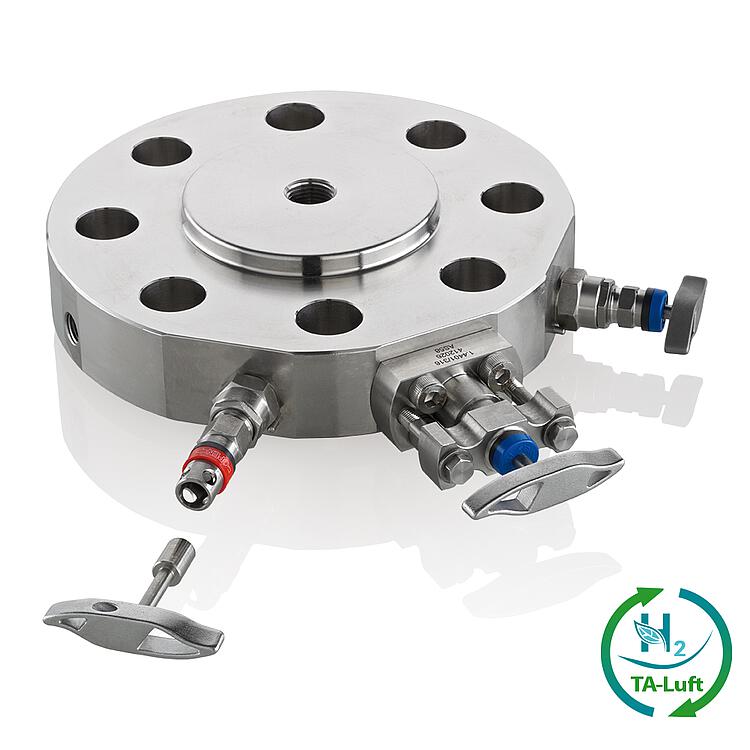

Process monoflange st.st / MGA-NNARFB-SD

  • Process monoflange st.st.
  • Primary Isolat. Valve OS&Y Bolted Bonnet
  • inlet: flange ASME 2″ 150 RF
  • Outlet: connection for Rosemount type 3051
  • material:316/316L
  • Outlet position: axial
  • Flow pattern: Double Block&Bleed
  • Type of vent: female thread 1/4NPT with plug
  • Packing: PTFE
  • CustomsTariffNo:84818073

Process Monoflanges Drawing (arrangement) 1
