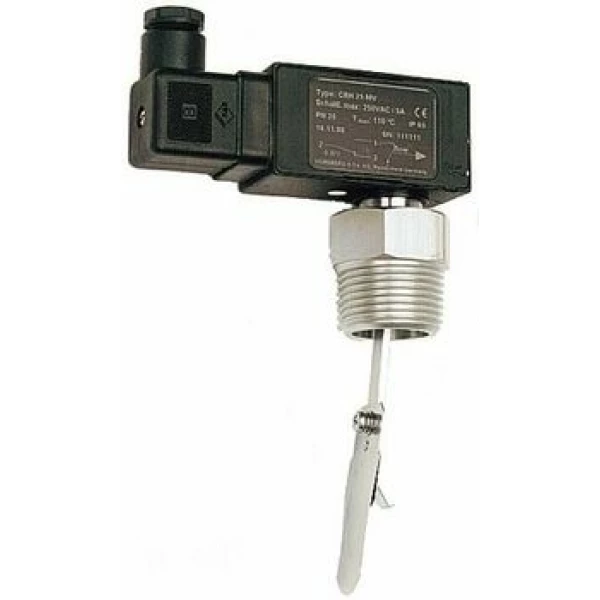

Paddle flow switch Type: CM2K-HM

Paddle flow switch
For liquids only
Suitable for pipe sizes from DN25 to DN200
Nickel-plated brass or St. steel material
Process connection 1 ″
Adjustable range from 0.9 to 71 m3 / h (1 Cst)
SPDT microswitch 250Vac - 5A
Max pressure 25 bar
Max. Temperature 110°C
Protection class IP65

Measuring range

Clear

Designed for flow control in pipes from DN25 to DN200. Its simplicity of installation and robustness make it suitable for industrial use, for air conditioning and heating. The pallet undergoes a displacement proportional to the flow associated with it, the displacement is mechanically transferred to a microswitch.
