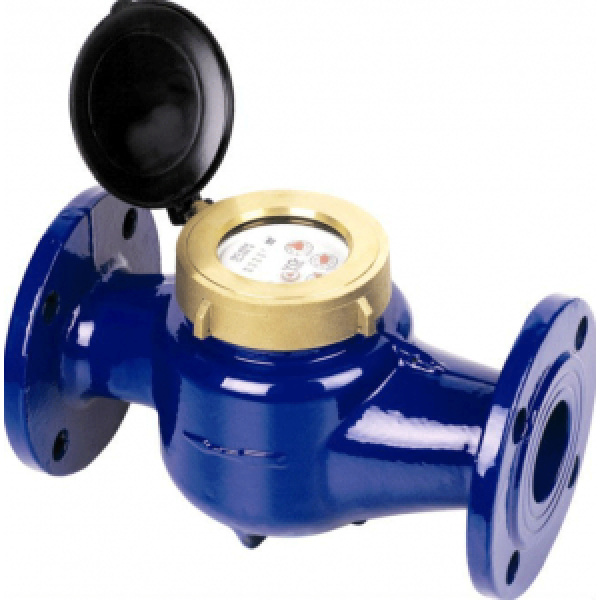

Multi-jet Cold Water Meter 2″ DIN - PN16 (DN50)

DN50 multi-jet water meter (cold)
2″ DIN PN16
Dry dial Q4 31.25 m3 / hour
Suitable for: Subdosing / light industrial
MID Approved R80 T30
WRAS Approved Product
Weight: 5.2 kg

MJ-SDC-50-FL

DN50 Multi-Jet Water Meter (cold)
2″ BSP PN16
Dry dial Q4 31.25 m3 / hour
Suitable for: Submetering / Light Industrial
MID Approved R80 T30
WRAS Approved Product

This cold multi-jet water meter comes with reducer nipples and O-rings. Suitable for secondary billing tasks for water volume and light industrial metering applications. This model has a frost-resistant dial, tamper-proof mechanism and pulse output.

Applications:

- Tennant billing
- Monitoring of filter life

- Commercial building monitoring and connection to BMS

- Distribution of the municipal construction zone

- Measurement of industrial water consumption in factories and plants

Pulse output	No pulse (default), Reed switch Pulse output K-10, Reed switch Pulse output K=1, Reed switch Pulse output K=100
Brand	Sensors.co.uk
Pipe assembly kit	15 mm copper pipe adapter set, HEP20 adapters (set), Standard connection set
