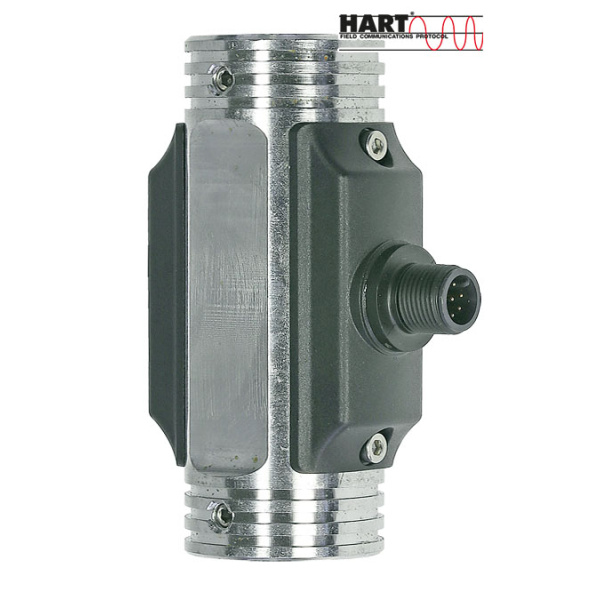

Müller Modular Universal - Load Cell Standard HART (on request)

Technical Characteristics

• Sensor input: load suspension
• Function load cell: tensile load | compression load | tension and compression load
• Measuring range: 500 kg | 1000 kg | 1500 kg | 3000 kg
• Output: voltmeter / 4 ... 20 mA HART
• Power supply: 12 ... 40 VDC current loop / bridge power supply 10 V
• Accuracy: see technical data
• Protection: IP65
• Vibration protection: electronics fully encapsulated
• Configuration: via superimposed HART communication
• Material weighing cell: stainless steel, alloy steel nickel plated
• Accessories: rod head
