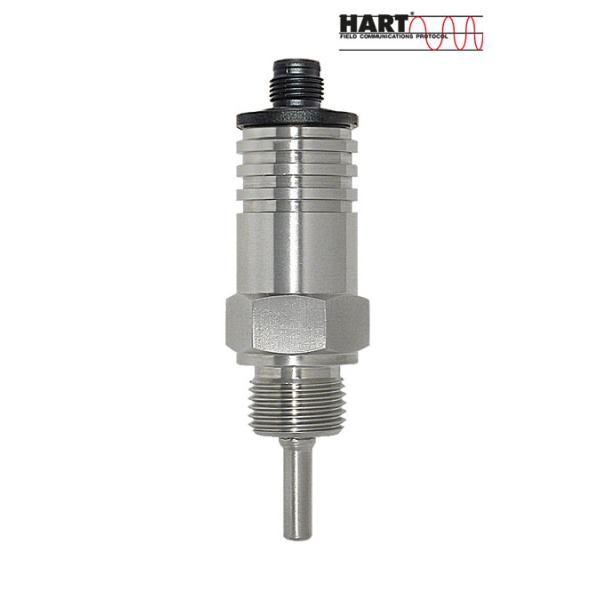

Müller Modular compact temperature sensor HART

MKG112-030-63112

technical features

Measuring element as Pt 100, Pt 1000, 2-, 3-, 4-wire
Inside of case completely potted
Protection tube and case are made of stainless steel 1.4571
Process terminal thread 1/4″, 3/8″, 1/2″, 3/4″, 1/4″ NPT, 3/8″ NPT, 1/2″ NPT
optional transmitter 4...20 mA, programmable
Cable connection with plug MIL D38999, valve plug DIN EN 175301-803,
RSE4 compatible plug M12x1, cable entry M12x1,5 with cable
Degree of protection IP 67

Weight	1 kg
Brand	Müller IE
Output	Pt100 3-wire, 4 ... 20 mA HART, Pt100 2-wire, Pt100 4-wire
Tube length (mm)	100, 110, 150, 200, 400, 50, 65, 85
Nutrition	10 ... 35 V DC, passive element
Electrical connection	DIN EN175301-803-A, M12x1, 4-pole, M12x1, 5-pole, Cable 2 mtr. PUR
Range (°C)	-20 ... +120, 0 ... 100, 0 ... 120, Other range, 0 ... 200, 0 ... 50
