Mounting kit GNOM MK DDE

Mounting kit GNOM MK DDE2 is used for mounting GNOM DDE sensors in air suspension in the following cases:

• mounting GNOM DDE in M22x1.5 threaded hole with resumption of compressed air supply line; GNOM DDE mounting in gap of Ø=8 mm pipeline (compressed air supply line);
• GNOM DDE mounting in Ø=8 mm supply pipe fitting.

GNOM MK DDE2 contains only high-quality components designed specifically for use in vehicle air suspension systems.

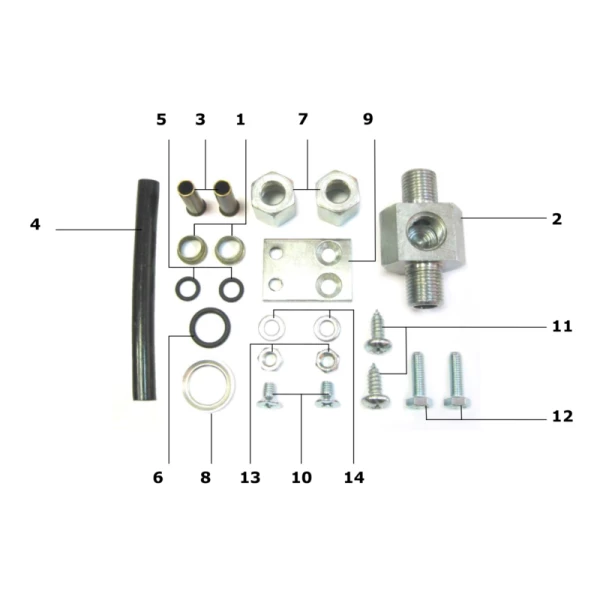

1. Conical sleeve - 2 pieces;
2. Fitting adapter (T splitter) - 1 pcs;
3. Nipple - 2 pieces;
4. Pipe Ø=8 mm - 1 pcs;
5. O-ring - 2 pieces;
6. O-ring - 1 st.;
7. Swivel nut - 2 pieces;
8. Ring 16 - 1 st.;
9. Mounting bracket - 1 st.;
10. Screw M6x8 - 2 pieces;
11. Self-tapping screw 6.3×13 - 2 pcs;
12. Bolt M6x20 - 2 pieces;
13. Nut M6 - 2 pieces;
14. Ring M6 - 2 pieces;
