MG-84A - MECHANICAL METER

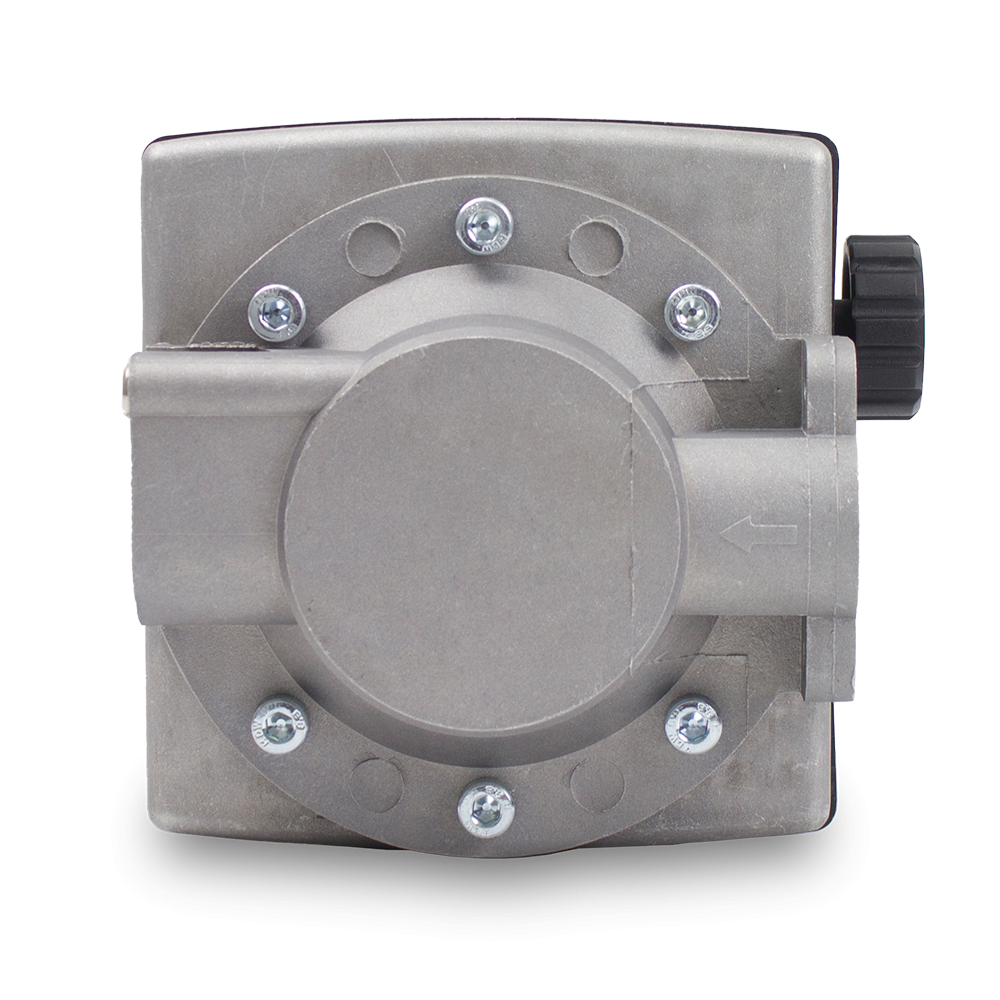

• Aluminum body
• Made of aluminum and high quality plastic materials. Its measuring chamber is fireproof of oscillant disc and it allows to transfer any type of hydrocarbon liquids (please, consult other liquids).
• Flow: 15-90 l/min
• Accuracy: ±1 %

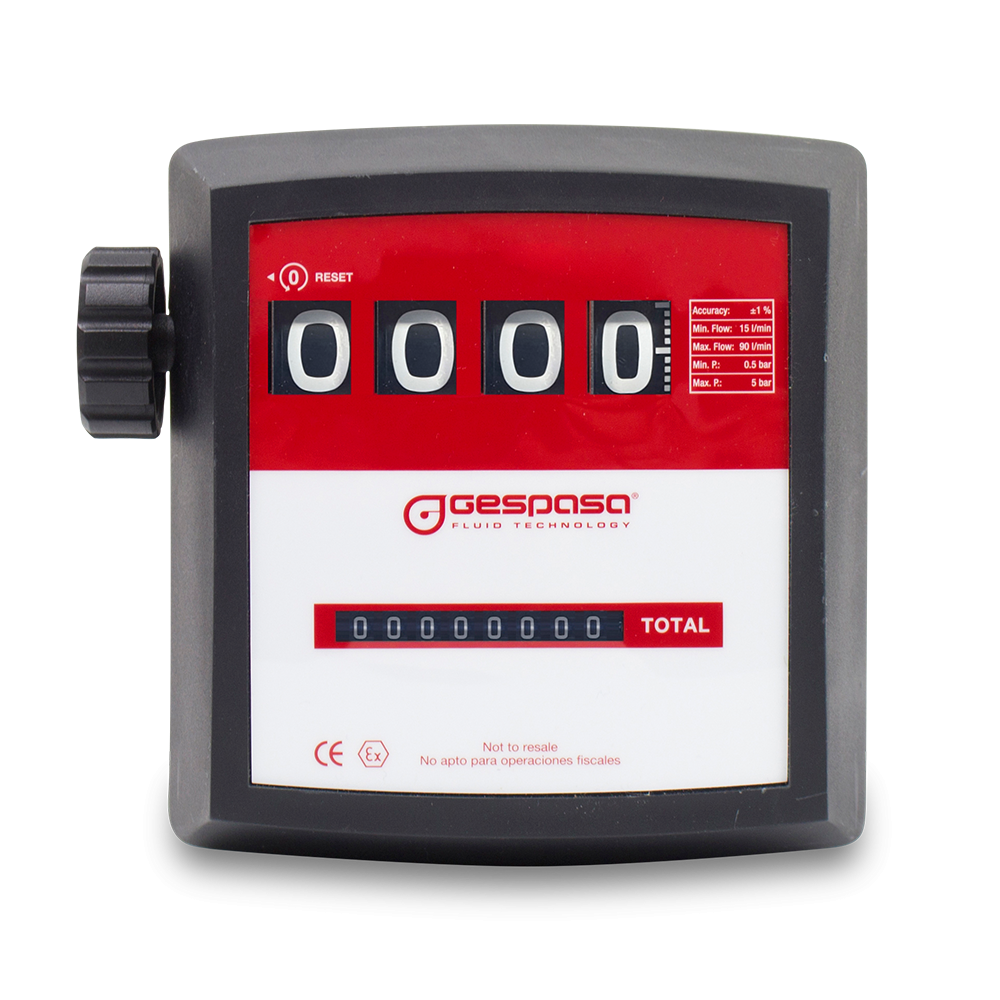

• Partial indicator of 4 digits and totalizer of 8 digits
• Maximum operation pressure: 5 bar
• Resistance pressure: 15 bar
• Ambient temperature: -10 ºC / +60 ºC
• ATEX IIG Category
• Protection mode: own supply: Ex h IIB T5 Gb
• Polyamide + Fibreglass housing
• Inlet/outlet Connections: 1″ GAS (BSP)
• Inlet connection through threads or flanges
• For private use, not suitable for fiscal operations

Size and weight (approx.):

• Dim.: 180x132x165 mm (length x width x height)
• Weight: 1.95 kg
