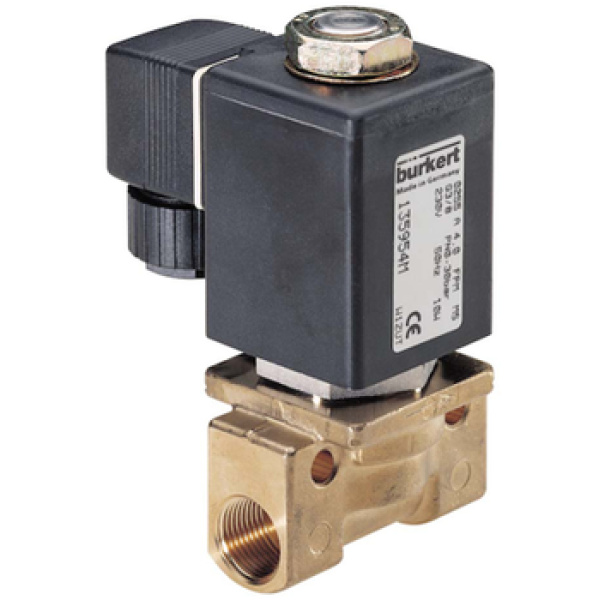

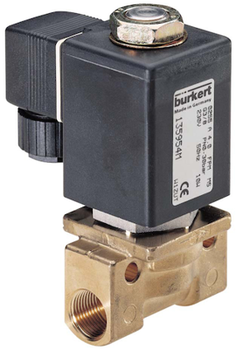

Solenoid valve 2/2 way Type: 255

Direct acting plunger solenoid valve
Function:2/2 Way normally closed
Applications: Neutral liquids (gas version available).
Suitable for vacuum
Housing material: brass, AISI
Sealing materials: PTFE
Nominal diameter up to DN 6 mm
Maximum pressure: 16 bar
Temperature: liquid -14 ... + 180 ° C
Environment max + 55 ° C
Connection up to 1/2 "

High quality direct operated solenoid valve with integrated metal gasket in the housing and wear-resistant stainless steel seat. Three-way versions (Type 0355), for high pressures (up to 100 bar) and for high temperatures (up to 250°C) are also available.

Brand	Bürkert

Product Documents

Datasheet
