Hikmicro M11W | 192 x 144 pixels

HIKMICRO M11W 192×144 Thermal imaging camera with wide-angle lens and touchscreen

The M11W has a thermal lens with 192×144 pixels which gives this device a wide angle. This is also called a "Wide angle" This allows an image to be taken many times closer to an object. Think of the full give of a house. The accessible menu can be easily operated via the touchscreen.

• The HIKMICRO M11W handheld Heat camera is specially designed for professional inspections of large objects where a
  wider FOV captures more of the scene in one image.
• It is equipped with a 192 × 144 resolution thermal detector, 37.5° × 27.9° fixed focus lens, and an 8MP resolution visual camera.
• The high-resolution 3.5-inch touchscreen provides crisp, clear images and streamlines camera operation.
• The image modes are thermal, visual, image in an image of optical and thermal, and merging of both channels.
• The M11W quickly identifies potential failures and quantifies the impact with accurate temperature measurement, provides detailed documentation to efficiently complete your inspections.

Key features

• Highly sensitive thermal module with 192 × 144 resolution
• Supports multiple palettes
• High-quality optical module with 8 MP resolution
• Bi-spectrum image fusion, picture-in-picture preview
• Wide temperature measurement range: -20°C to 550°C
• High accuracy temperature measurement: Max (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C.
• 3.5″ LCD touch screen with 640 × 480 resolution
• Long-range laser supplement for heat targets
• LED light supplement turns the device into a flashlight in required scenarios
• 1.0× to 8.0× continuous digital zoom
• Supports external album access, download and quick reporting with APP.

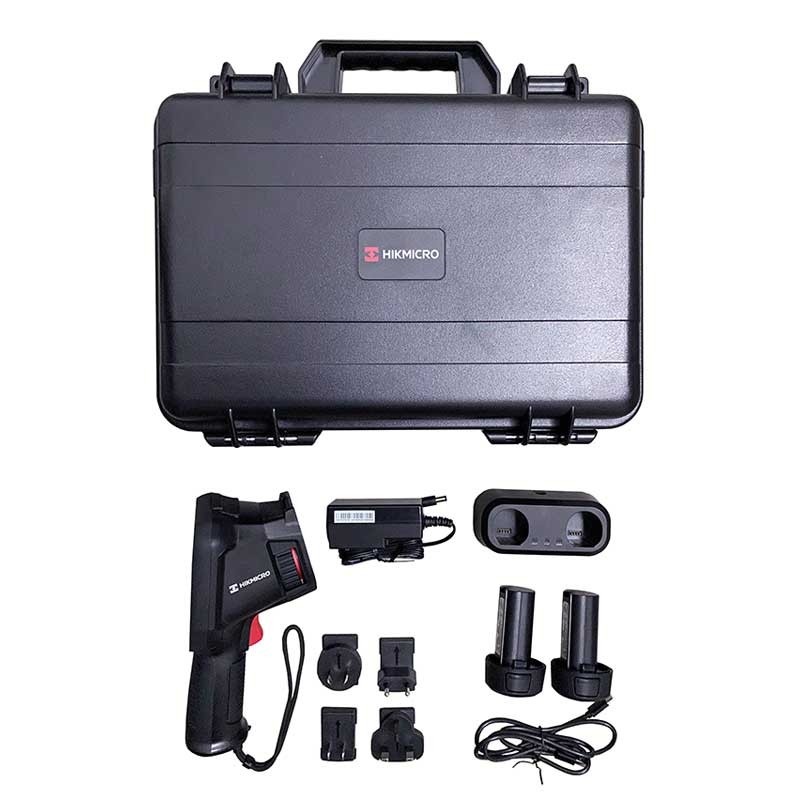

Other specifications:

• Hikmicro M11W
• Robust Case
• USB cable
• 2x Li-ion interchangeable battery
• Charging station for 2 batteries
• Wristband
• Quick start manual
