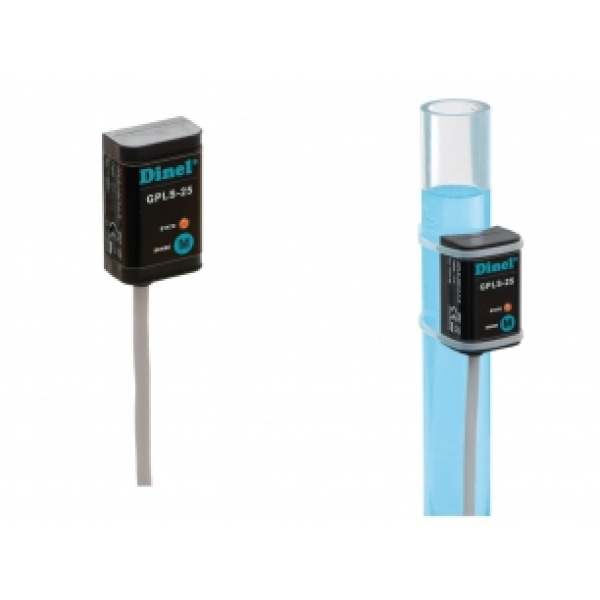

GPLS-25N-0-A-P Level switch for liquid detection from outside, for level measurement in plastic or glass tubes and pipes.
The Level Switch is used with the concave side attached to the pipe or tube with 2 plastic tyraps.
Settings are easily adjusted with a magnetic pen (Sensitivity and NO or NC).
Settings are easily adjusted with a magnetic pen (Sensitivity and NO or NC).
- power supply: 6 ... 30VDC, PNP, 3-wire with standard 2m cable.
- Can be used for direct connection to a PLC (PNP).
- the Variant with 2 wires is NPN.
VARIENTS:
GPLS - 25N - 0
Prismatic (broken) electrode, adapted to shape to be attached to measuring pipe or other tube. Attachment of the sensor to a tube is provided by plastic straps.
GPLS - 25N - 1
Flat electrode, suitable for flat mounting surfaces (e.g. plastic or glass tanks). The sensor can be attached with plastic tapes or double-sided
adhesive layer.
