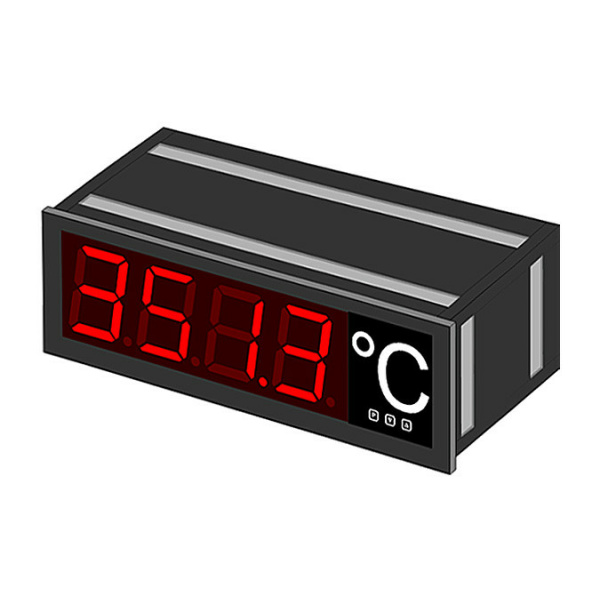

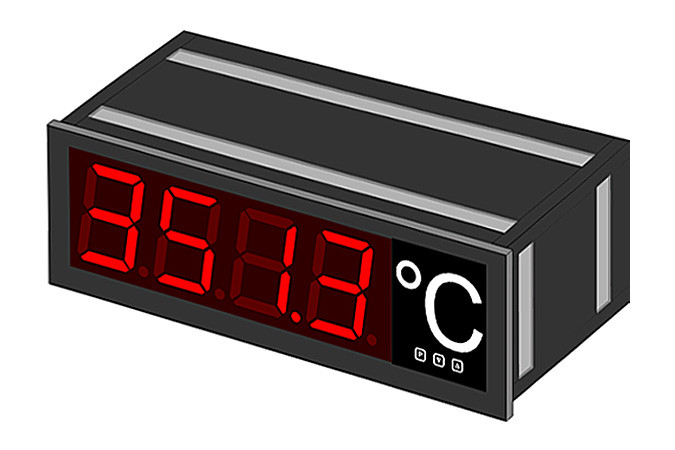

Large digital indicator, height characters 57/100/200 mm Counter

Description
Downloads

Display 57 mm: MG-ACR41.0 / MG-BCR41.0
Display 100 mm: MG-ACR42.0 / MG-BCR42.0
Display 200 mm: on request
Grades: 4
Color: red (option: green)
Operation: front panel keyboard
Input: up to 10000 pulses/s, timer from 10 ms
Switching output: 2x Photo-MOS
Sensor power supply: 24 VDC, 50 mA
Mounting: recessed or surface mounted
Power supply: 100 ... 240 VAC / 18 ... 36 VDC
