Humidity switch PLS1000

Is your basement damp? Has mold already formed? Or do you want to properly air condition your wine cellar? Here's the solution! Almost everyone in the house knows the problem: If the maximum humidity in a room is exceeded, some of the water condenses - the walls become damp, mold and a musty smell develops. Especially in private, professional and hospitality kitchens, bathrooms and washrooms as well as basements where there is a humid climate, the risk of wet walls and the development of harmful mold growth is high. Our professional humidity switch PLS1000 can help with this. It takes over the ventilation of your rooms fully automatically (e.g. via a room fan connected to the control) and only if the existing humidity and temperature allow it.

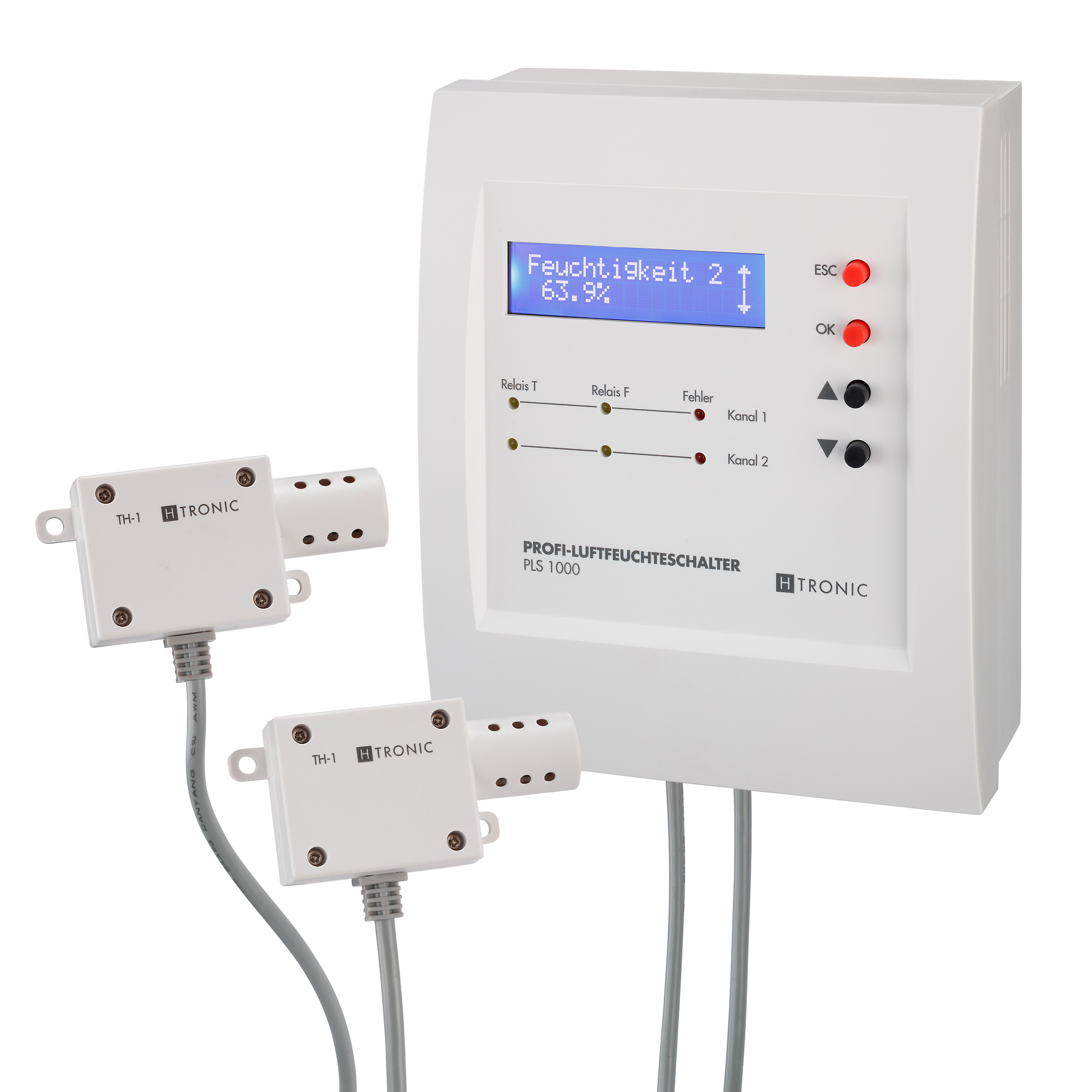

Using two sensors (they are included in the delivery), the PLS 1000 can measure the current relative humidity and temperature in two environments. The PLS 1000 uses these values to determine the absolute humidity and the respective dew points. Based on these values, 5 integrated functions can be used to implement various humidity and temperature controls. Room fans for supply and exhaust air can be controlled directly via 4 integrated, potential-free relays. Typical applications include measuring humidity and temperature, automatically ventilating, drying or humidifying rooms, manually controlling room fans and implementing a 2-channel temperature and humidity switch.

Technical data:

• Operating voltage: 230 V / AC (50 Hz)
• Power consumption: approx. 1W
• Switching voltage (per relay): max. 230 V / AC max. 12A to 24 V / DC max. 10A
• Max. Switching capacity (total): approx.2700 VA
• Temperature measurement range: -40 ° C to +125 ° C
• Humidity measurement range: 0% RH to 100% RH

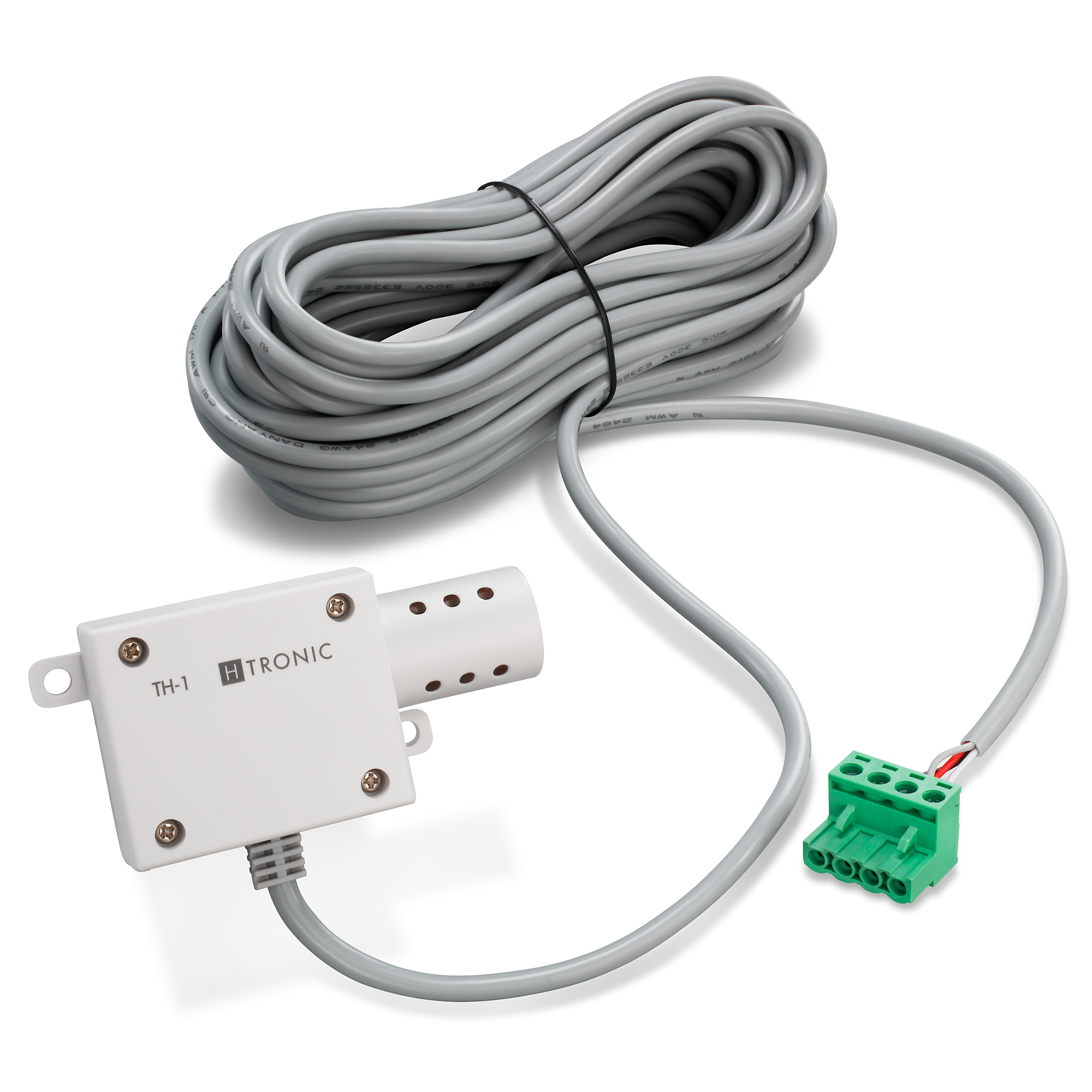

• Included in delivery are 2 x TH-1 sensors with 10 meter sensor cable
  (extendable max. 50 meters (4 x 0.14 mm²)
• Protection class (control): IP20
• Protection class (sensors): IP64
