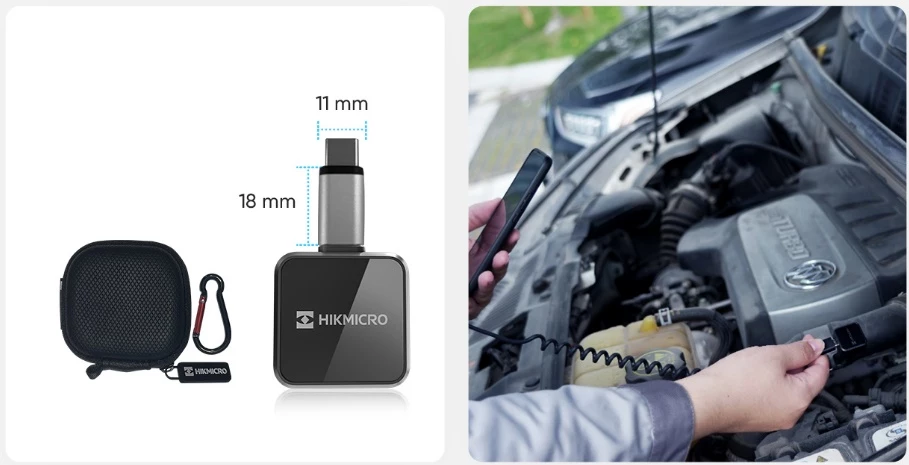

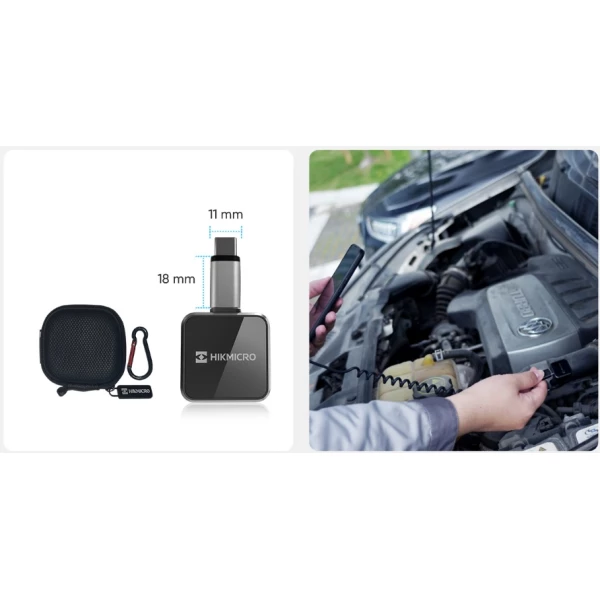

Measuring only 42 x 22.5 x 11.2 mm (1.65 x 0.89 x 0.44 inches) and weighing only 20 g (0.71 oz), it fits in your pocket, tool bag or anywhere else for quick and easy access.

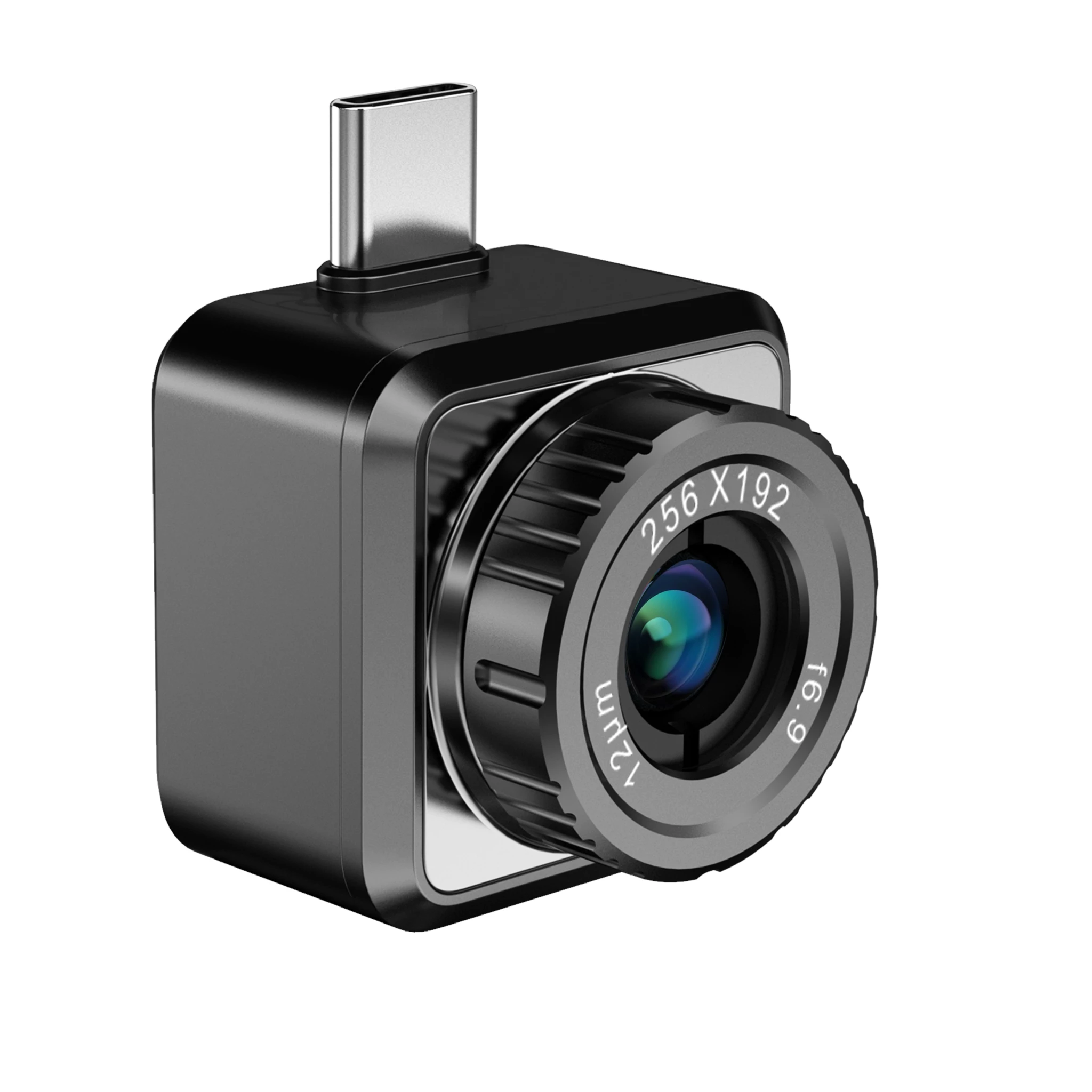

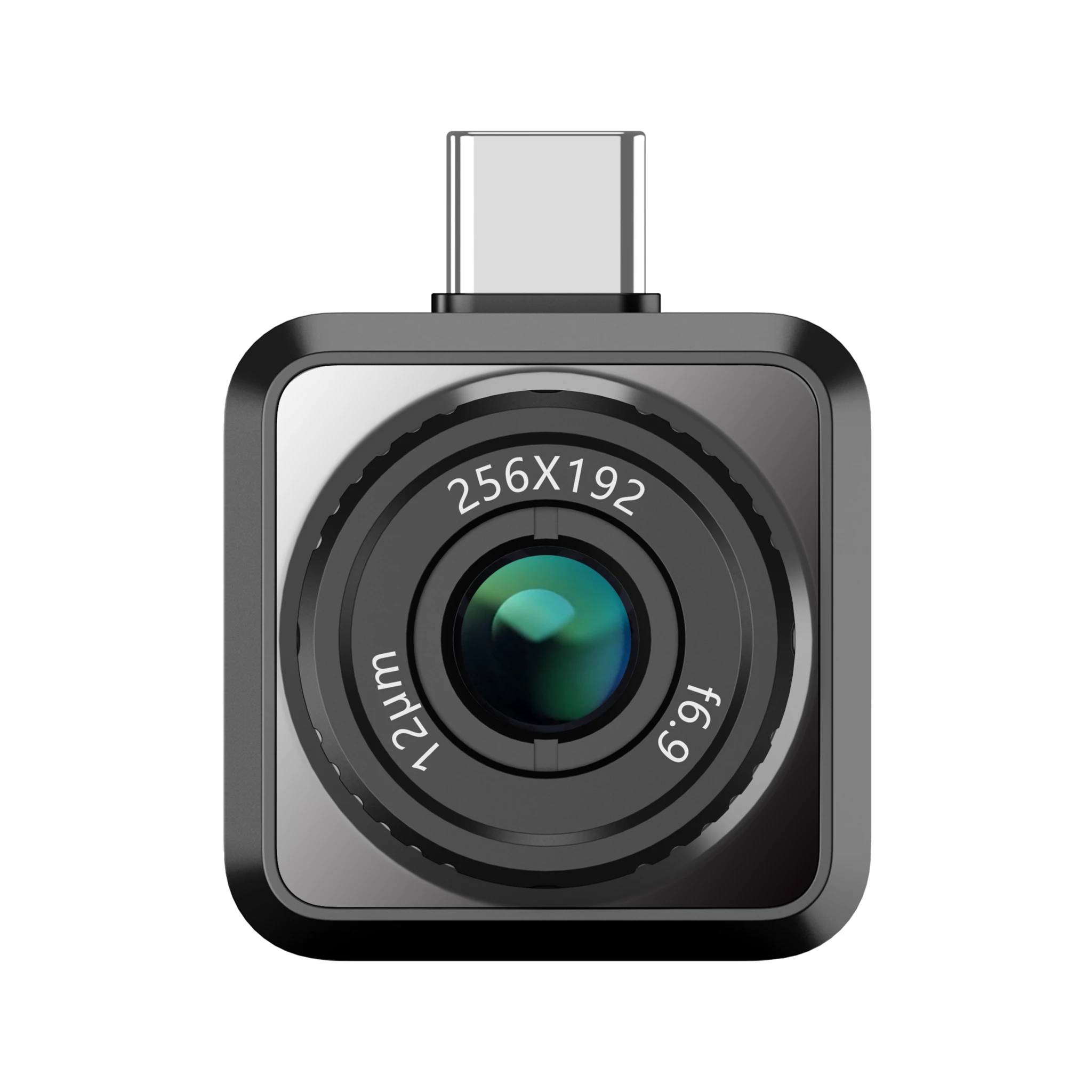

The Mini2plus USB-C Camera for Smartphone is a compact thermal imaging camera with very high resolution, and a wide temperature range from -20°C to 350°C.

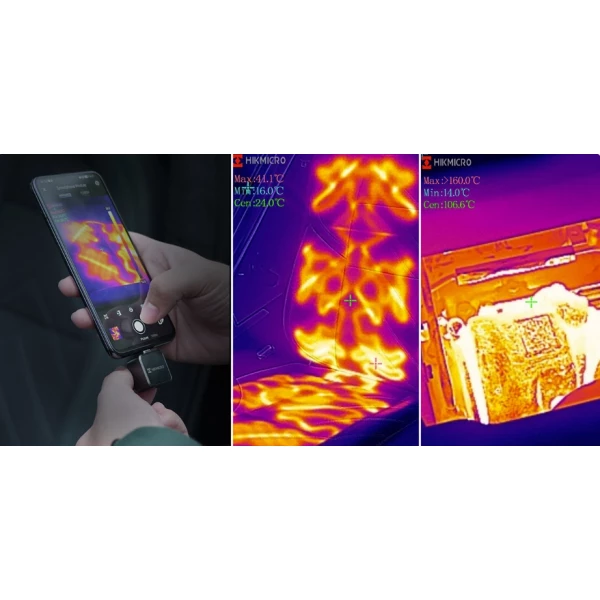

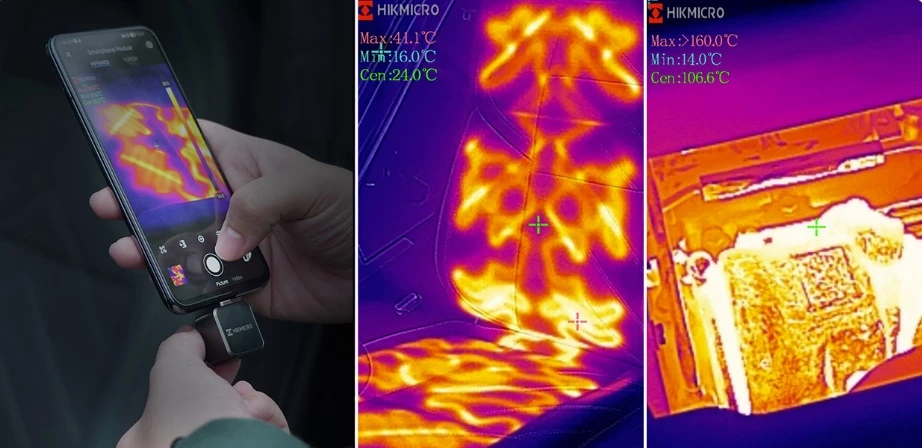

Quickly and accurately locate temperature problems that cannot be seen with the naked eye.
You'll find air leaks, plumbing problems, hot relays and fuses, insulation problems, and more.
The Mini Series thermal camera is a cost-effective and powerful tool for any job.
| Infrared image | |
| IR resolution | 256 × 192 (49,152 pixels) |
| NETD | < 40 mK (at 25 °C, F#=1.0) |
| Image frequency | 25 Hz |
| Detector distance | 12 μm |
| Spectral range | 7.5 to 14 μm |
| Focal length | 6.9 mm |
| F-number | F1.0 |
| Field of view (FOV). | 50° × 37.2° |
| Focus mode | Manual focus |
| Min. Focus distance | 0.1 m (0.33 ft) |
| Display | |

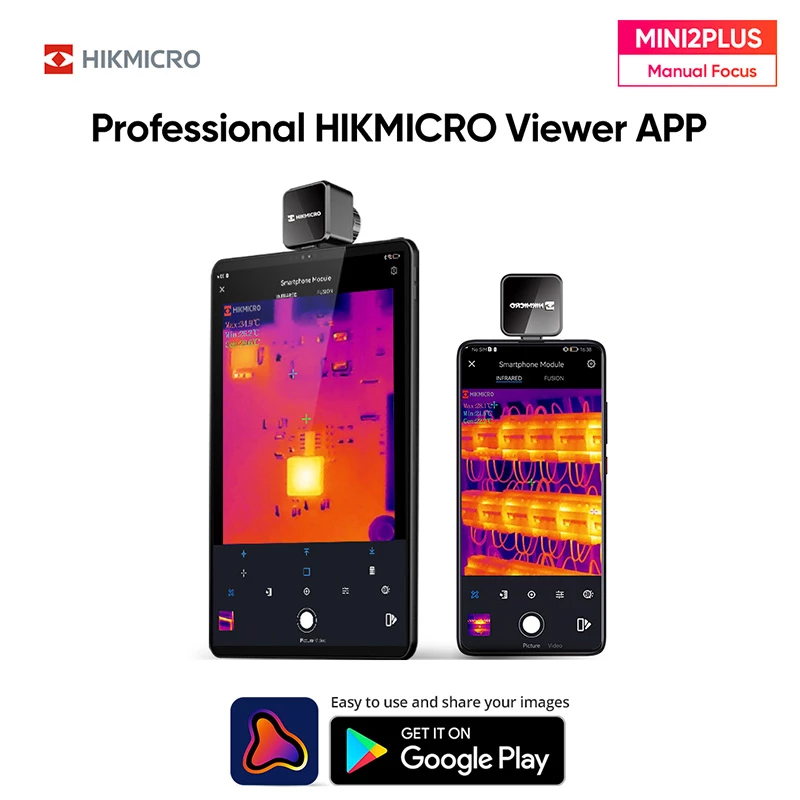

| Image modes | Thermal/Fusion |
| Color Palettes | Whitehot, Blackhot, Rainbow, Ironbow, Sepia, Color, Ice Fire, Rain, Red Hot, Green Hot, Dark Blue, Combined |
| Measurement and analysis | |
| Temperature range object | -20°C to 350°C (-4°F to 662°F) |
| Accuracy | Max (±2°C/ ±2%), for ambient temperature 15°C to 35°C and object temperature above 0°C. |
| Measuring instruments | Center Spot, Hot Spot, Cold Spot User-adjustable: 3 spots and 3 rectangles. |
| Level and range mode | Auto/Manual |
| General | |
| Power consumption | 360 mW |
| Protection level | IP40 |
| Drop test height | 1 m (3.28 ft) |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F ) |
| Storage temperature range | -20°C to 60°C (-4°F to 140°F ) |
| weight | Approx. 24 g (0.044 lb) |

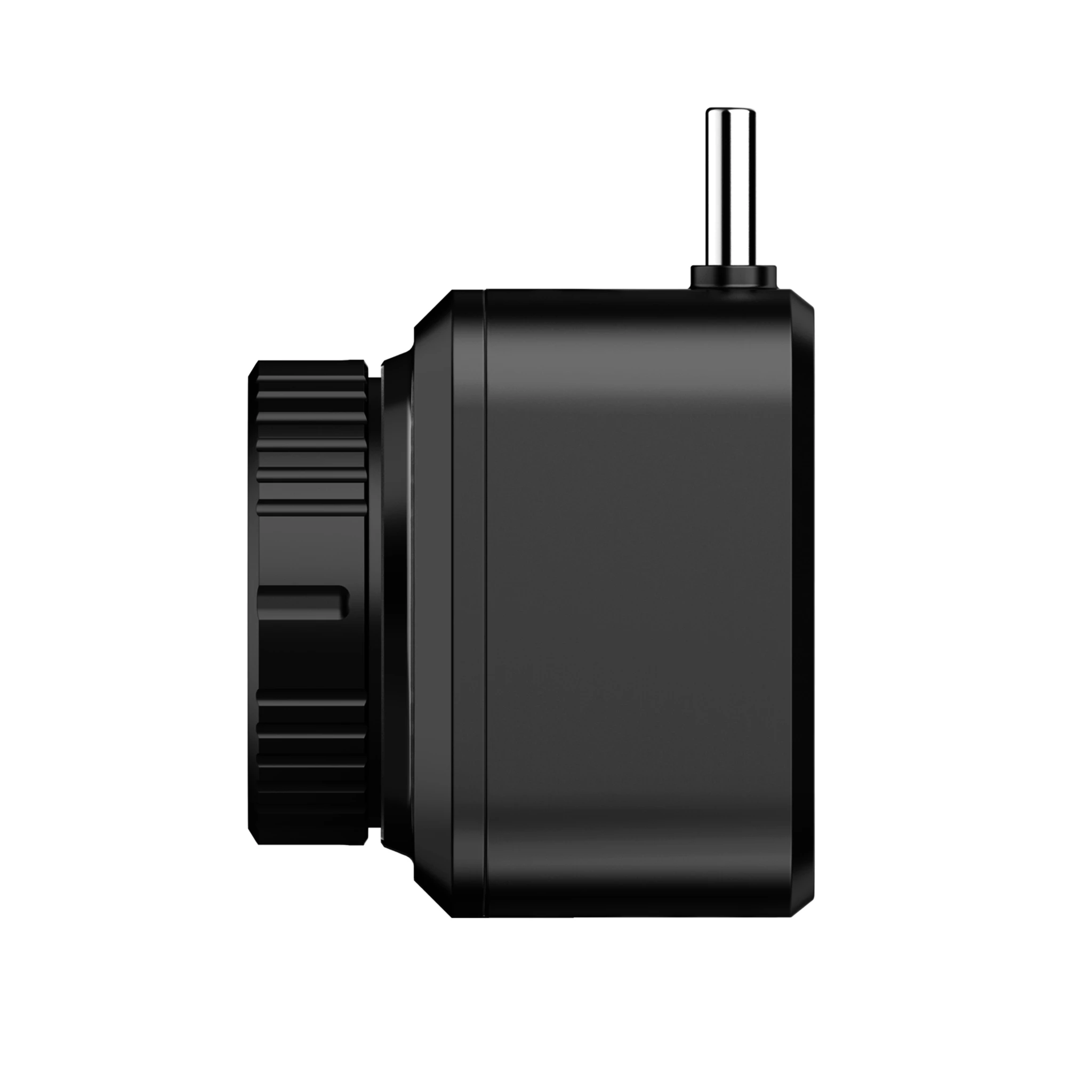

| Dimensions | 26.6 × 26.6 × 25 mm (1.05 × 1.05 × 0.98 in) |
| EAN Code | 6974004642426 |
