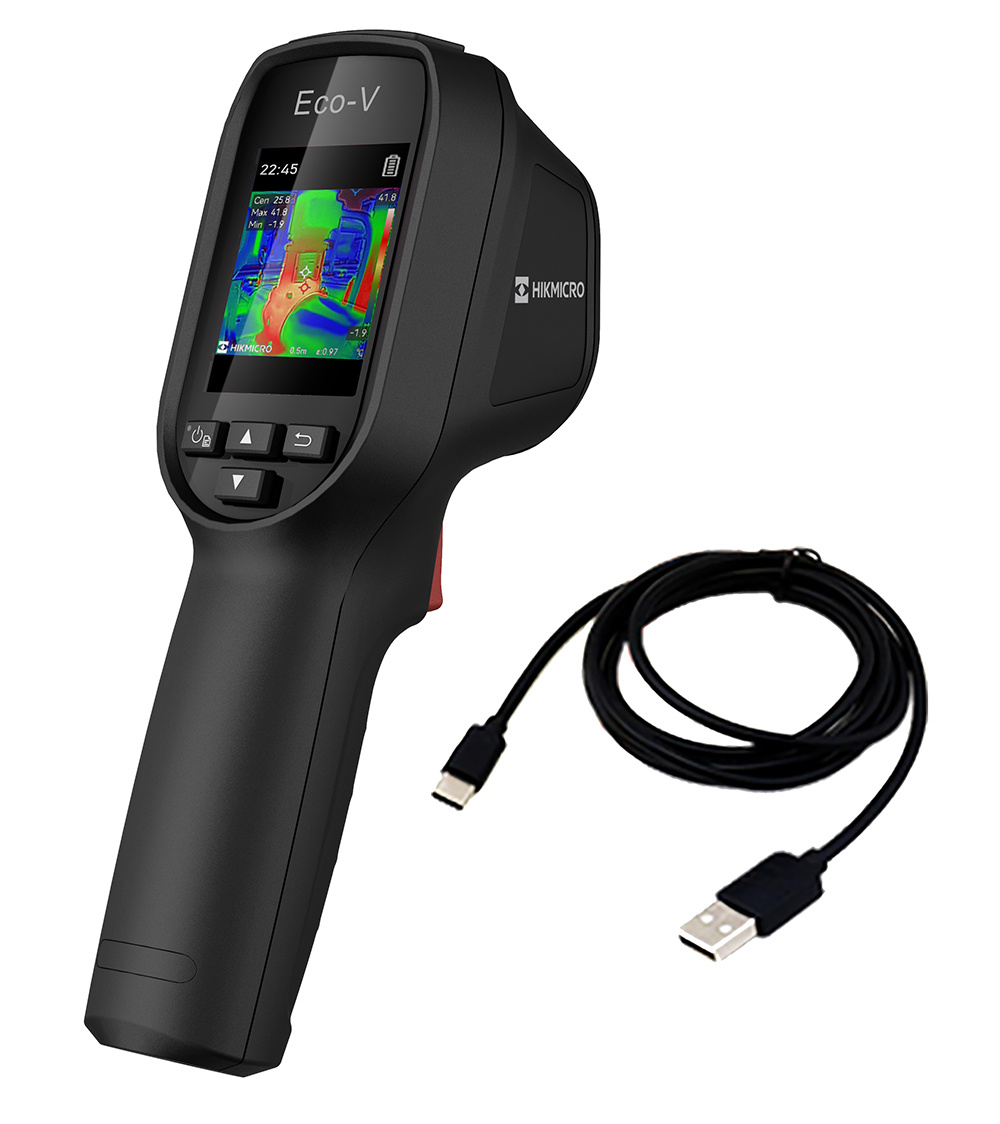

This Hikmicro thermal imaging camera features a 96×96 pixel thermal camera. Due to the "Super IR" resolution, the ECO-V has an extra sharp image, which can be compared to a resolution of 240×240 thermal pixels. The "Super IR" provides a digital enhancement of pixels through extremely clever software. This allows the original 96×96 pixels to be converted to 240×240 pixels. In addition to the thermal camera, this ECO-V also has an optical camera which allows the outline of the normal image to be seen through the thermal image. This is called ee fusion image (aka MSX technology) and provides an even better, clearer and sharper image. With a "Fusion" image, details can be observed extremely accurately. The Hikmicro ECO-V also features a laser pointer to make it even easier to see at a glance where the thermal camera is pointed.
Characteristics:
- Thermal resolution: 96 × 96 (9,216 pixels)
- SuperIR: 240 × 240 (57,600 pixels)
- NETD: < 40mK (@ 25°C, F# = 1.0)
- Measurement presets: center spot, hot spot, cold spot, off
- 25 Hz frame rate
- Laser pointer
- Built-in 4 GB flash memory: 30,000 images
- Up to 8 hours of continuous operation
- Thermal/Visual/Fusion
MODEL |
ECO-V |
ECO |
| IR resolution | 96 × 96 (9,216 pixels) | 96 × 96 (9,216 pixels) |
| SuperIR resolution | 240 × 240 (57,600 pixels) | 240 × 240 (57,600 pixels) |
| Distance to spot ratio (D:S). | 112:01:00 | 112:01:00 |
| Image frequency | 25 Hz | 25 Hz |
| NETD | < 50 mK 25°C | < 50 mK 25°C |
| Detector distance | 12 μm | 12 μm |
| Focal length | 1.35 mm | 1.35 mm |
| Spectral range | 7.5 to 14 μm | 7.5 to 14 μm |
| F-number | F1.0 | F1.0 |
| Field of view (FOV). | 50° × 50° | 50° × 50° |
| Spatial resolution (IFOV). | 8.89 mrad | 8.89 mrad |
| Min. Focus distance | 0.1 m (0.33 ft) | 0.1 m (0.33 ft) |
| Focus mode | Focusing free | Focusing free |
| Display | ||
| Display | 240 × 320 resolution, 2.4″ LCD screen | 240 × 320 resolution, 2.4″ LCD screen |
| Image modes ( MSX Technology) | Thermal/Visual/Fusion | Thermal |
| Color Palettes | White hot, black hot, rainbow, ironbow, red hot | White hot, black hot, rainbow, ironbow, red hot |
| Color Alarm | Above alarm | Above alarm |
| Visual camera | 640 × 480 | X |
| Measurement and analysis | ||
| Temperature range object | -20°C to 550°C | -20°C to 550°C |
| Accuracy | Max (± 2°C/ ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C |
Max (± 2°C/ ± 2%), for ambient temperature 15°C to 35°C and object temperature above 0°C |
| Measuring instruments | Middle spot, hot spot, cold spot | Middle Spot, Hot Spot, Cold Spot |
| Level and scope | Car | Car |
| General | ||
| USB interface | USB Type-C | USB Type-C |
| Laser | Yes, class II | Yes, class II |
| Battery type | Rechargeable Li-ion battery | Rechargeable Li-ion battery |
| Battery charging time | Approximately 3 hours fully charged | Approximately 3 hours fully charged |
| Battery operating time | Approx. 8 hours | Approx. 8 hours |
| Protection level | IP54 | IP54 |
| Drop test height | 2 m | 2 m |
| Operating temperature range | -10°C to 50°C | -10°C to 50°C |
| Storage temperature range | -40°C to 70°C | -40°C to 70°C |
| Relative humidity | < 95% non-condensing | < 95% non-condensing |
| Weight | Approx. 335 g (0.74 lb) | Approx. 335 g (0.74 lb) |
| Dimension | 196 × 117 × 59 mm | 196 × 117 × 59 mm |
| Tripod Assembly | UNC ¼"-20 | UNC ¼"-20 |
| EAN code | 6974004642921 | 6974004642914 |
