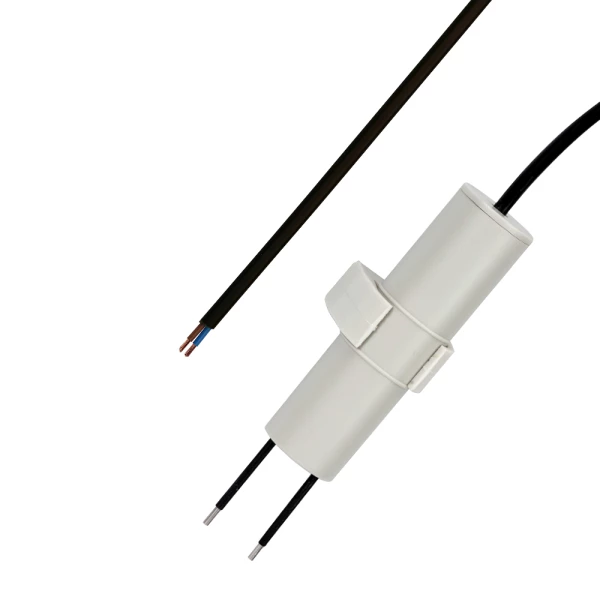

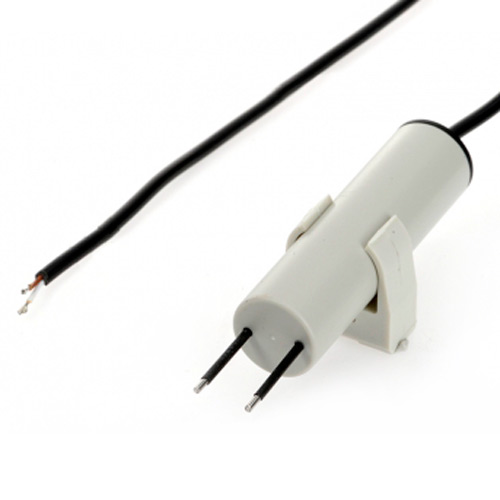

H-Tronic water sensor WS 5030 30m for WPS 4000 and WPS 5000

  • Design: sensor encapsulated in plastic (for conductive liquids)
  • Rugged sensor for permanent use underwater
  • Details: The measuring electrodes are resistant to chlorine and salt water (stainless steel AISI 316 / V4A)
  • Connection: approx. 30 m PVC cable with open wire ends
  • Dimensions (incl. metal sensors) LxD 90 x 20 mm

The water sensor WS 5030 is suitable in combination with the H-TRONIC water level switch WPS 5000 (Art. No. 1 11 45 00) and the WPS 4000 (Art. No. 1 11 44 60) for automatic level monitoring of conductive liquids in containers, wells , Basement rooms, etc. The metal sensors are molded into a plastic housing. This measuring sensor with a 30 meter long PVC connecting cable is intended only for detecting liquids in non-aggressive media.
