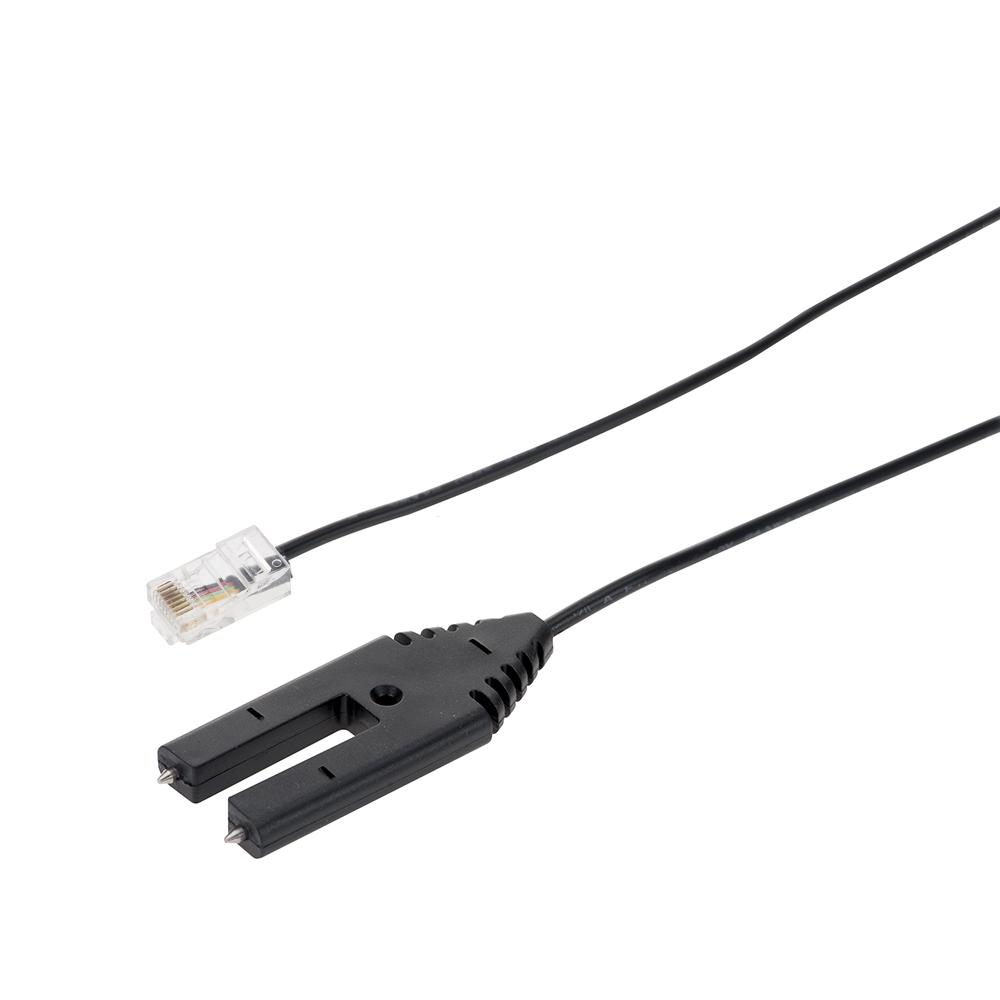

H-Tronic water sensor WS 20, suitable for WPS 3000 u. WPS 3000 plus

  • Design: sensor encapsulated in plastic (for conductive liquids)
  • Details: The measuring electrodes are resistant to chlorine and salt water (stainless steel AISI 316 / V4A)
  • Connection: approx. 10 m PVC cable with RJ45 plug
  • Dimensions (H x W x D): approximately 74 x 29 x 8 mm

The WS 20 water sensor is suitable in combination with the H-TRONIC water level switch WPS 3000 (Art. No. 1 11 44 55) and WPS 3000 plus (Art. No. 1 11 46 20) for automatic level monitoring in tanks, wells, Cellars etc. The metal sensors made of stainless steel are encapsulated in a robust plastic housing. The measuring sensor with a 10-meter-long PVC connection cable is intended only for detecting liquids in non-aggressive media.
