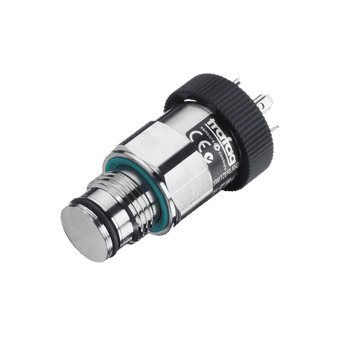

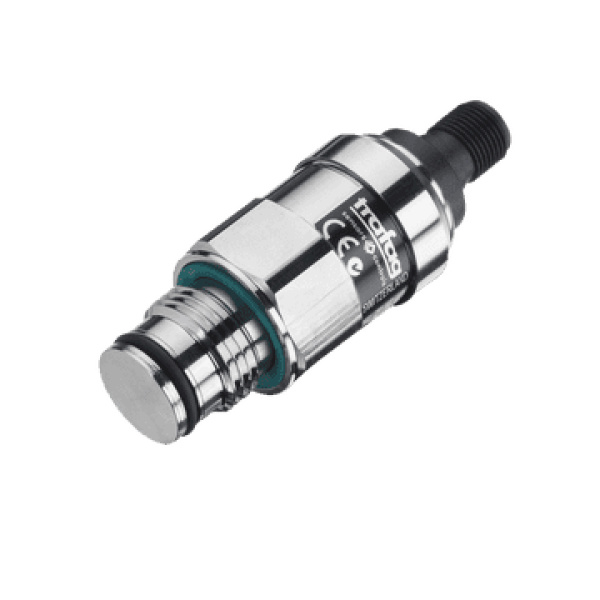

Flush Membrane IO-link Pressure Transmitter FPI-8237

Flat membrane with smooth and even surface
Duplex steel 1.4462
Media temperature measurement
Fully welded sensor system
Excellent long-term stability
2 switching outputs PNP/NPN/Push-Pull configurable
Output 4-20 mA 2-wire

The FPI 8237 IO-Link membrane pressure transmitter impresses with an absolutely smooth and robust built-in measuring membrane made of corrosion-resistant duplex steel. Designed as a smart sensor, the transmitter provides application-relevant information in addition to process data. Trafag 's patented thin-film-on-steel sensor technology ensures a wide temperature range and excellent long-term stability.

Weight	1 kg
Pressure range (Bar)	0 … 1, 0 … 10, 0 … 100, 0 … 16, 0 … 2.5, 0 … 25, 0 … 4, 0 … 40, 0 … 6
Output	4 ... 20 mA
Overpressure max.	12, 20, 200, 32, 5, 50, 8, 80
Nutrition	24 (9 … 32)
Brand	Trafag
Electrical connection	DIN EN175301-803-A, Electrical plug M12x1, 5-pole, Mat. PA (35)
