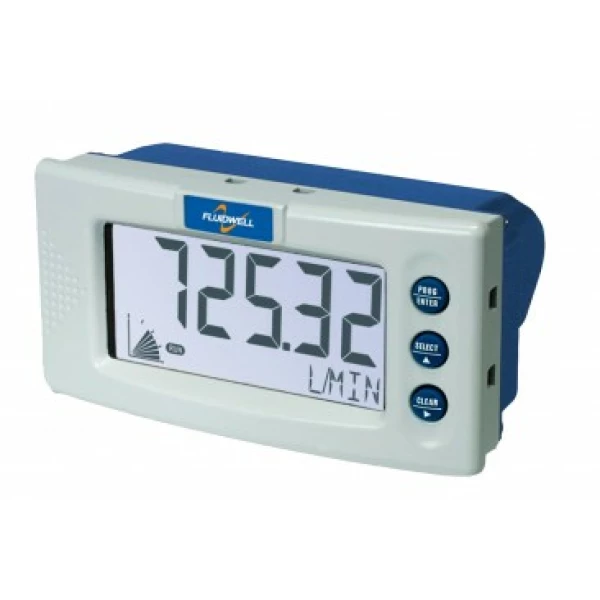

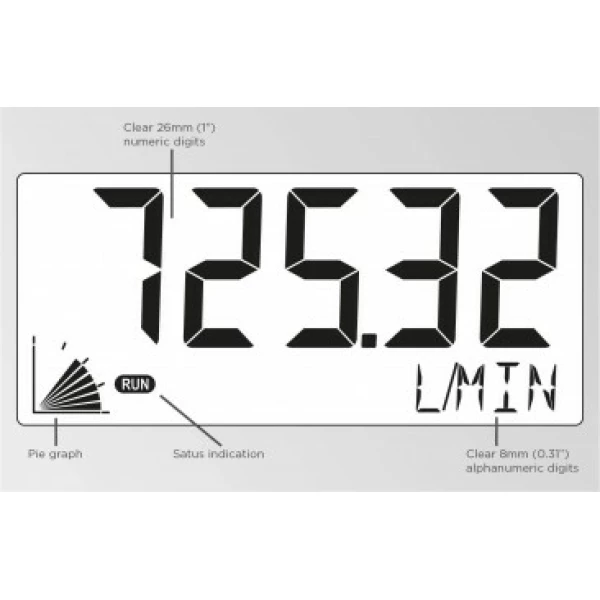

The Fluidwell D010 model is a DIN panel-mounted indicator that displays actual flow, in user-selectable engineering units. The display has very large 1" digits and a 10-segment piegraph indicator. Pulse input model that accepts; Reed switch, NAMUR, NPN, PNP, Sine wave (coil), active pulse signal. Aluminum front housing with IP67 (NEMA4X) protection from the front.
- Dimensions: 144 x 72 x 71.4 mm
- Panel recess: 138 x 68 mm
- Battery powered model
- Battery life of about 5 years
- Can also be powered by 8-30vDC, no sensor power supply.
