Fluidwell E Series - E112-P-AH-CH-HAA-IB-OT-PB-PX-XD-ZB-ZL-ZU-1TU

E112 Flow rate Indicator / Totalizer, with linearization, analog and pulse outputs
P - Primary input: Pulse e.g. coil, npn, pnp, namur, reed-switch
AH - Galvanically isolated, loop powered analog 4-20mA output
CX - No communication
HAA - Die cast aluminum Ex d enclosure with entry threads: 1 x 1 "NPT and 2 x 3/4 "NPT
IB - Remote control input to reset total or to lock the "clear total" button
OT - Passive transistor output(s).
PB - Internal power supply - long life time
PX - Basic power supply 9-27V DC
XD - Flameproof cf ATEX, IECEx, CSA, FM. I2GD Ex d IIC T6 Gb - Ex tb IIIC T85°C Db
ZB - Backlight ZX - No option selected

Description
Downloads

Type: E112-P-03
Model: E112-P-AH-CH-HAA-IB-OT-PB-PX-XD-ZB-ZL-ZU-1TU

Pulse input: coil, npn, pnp, namur, reed switch
Galvanically isolated, Loop powered 4-20mA Output
Enclosure: Die-Cast Aluminum Ex d Enclosure
Remote control Input to reset Total or to lock the "Clear Total" Button
Digital Output Signal: Passive Transistor Output -STD Configuration
Basic Power Input: 9-27V dc
Explosion proof Enclosure acc to ATEX IECEx, FM, & CSA
Back Light Included
Make Fluidwell

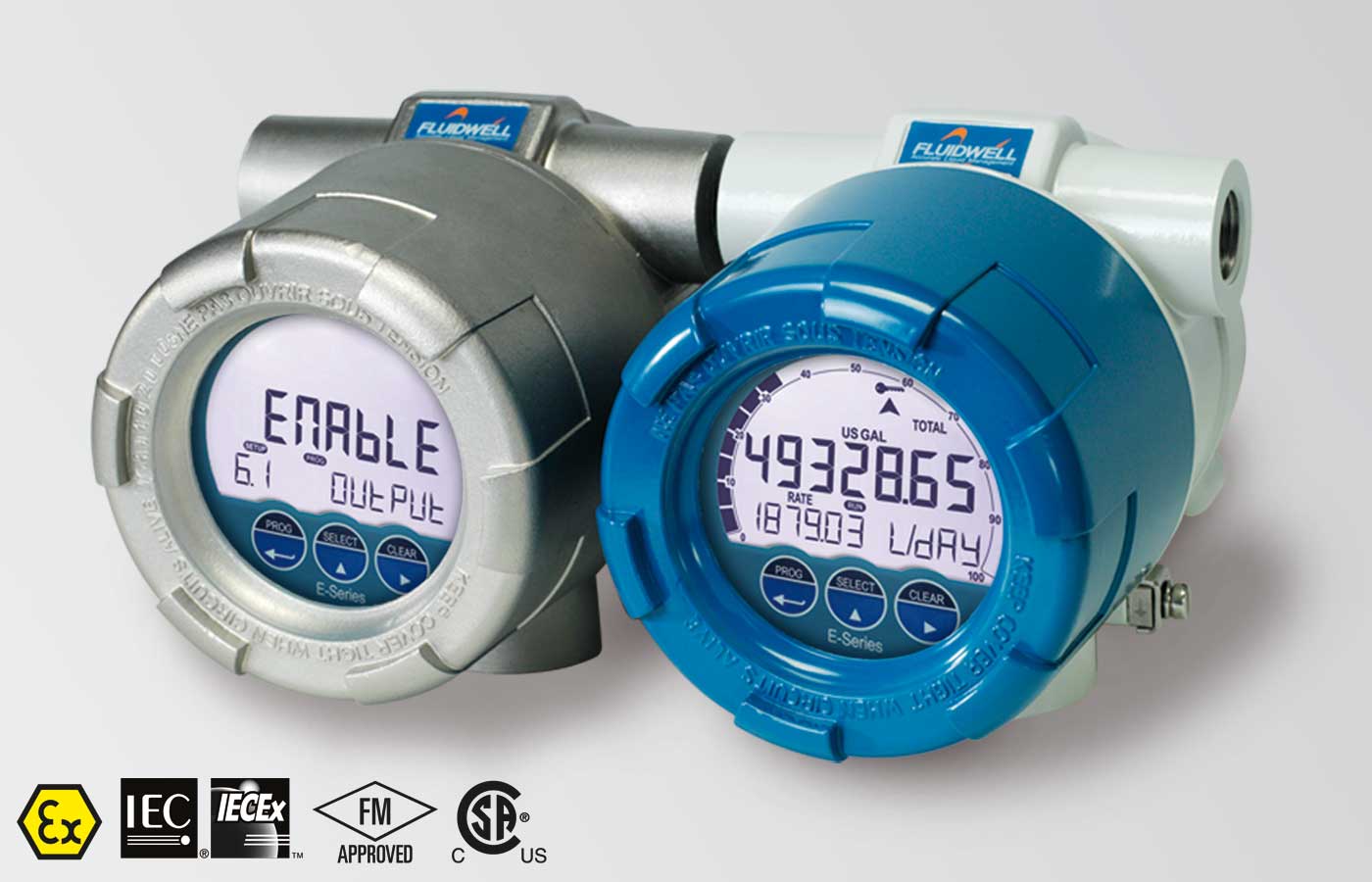

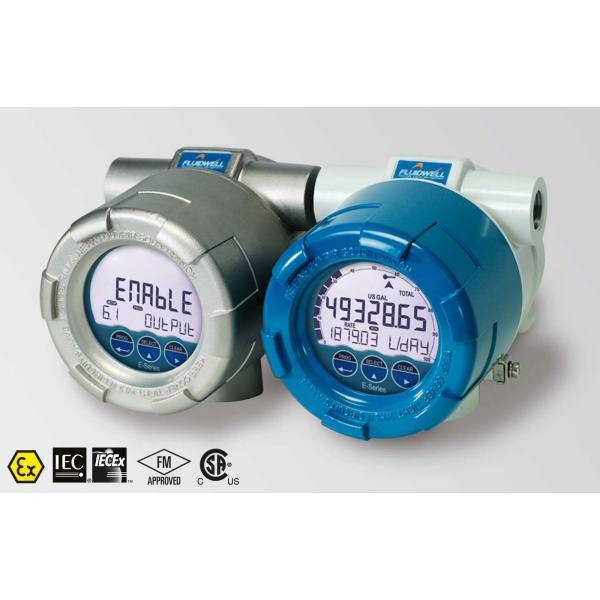

The E112 is a popular model in our range of explosion proof flow rate indicators / transmitters. In addition to the average K-Factor, 15 linearization points can be entered. The unit will interpolate between these points greatly enhancing accuracy in any flow range. The E-series is distinguished by its high quality manufacturing and its functionality driven European design. We believe, it is not just about fulfilling the requirements for explosion proof, but it is about safety during daily operation.

Ruggedness and reliability is where Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven Explosion proof flow rate indicator / totalizer.
