Name: Flow sensor with two analog outputs for flow rate and temperature
SKU: FXFF104
Availability: BackOrder

Flow sensor with two analog outputs for flow rate and temperature

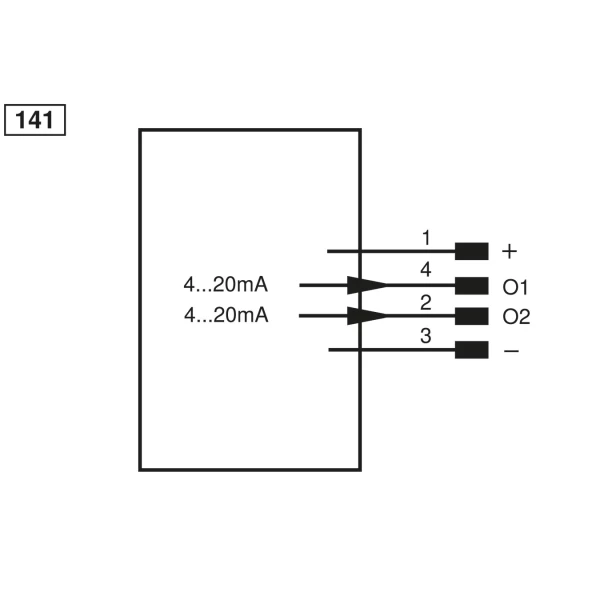

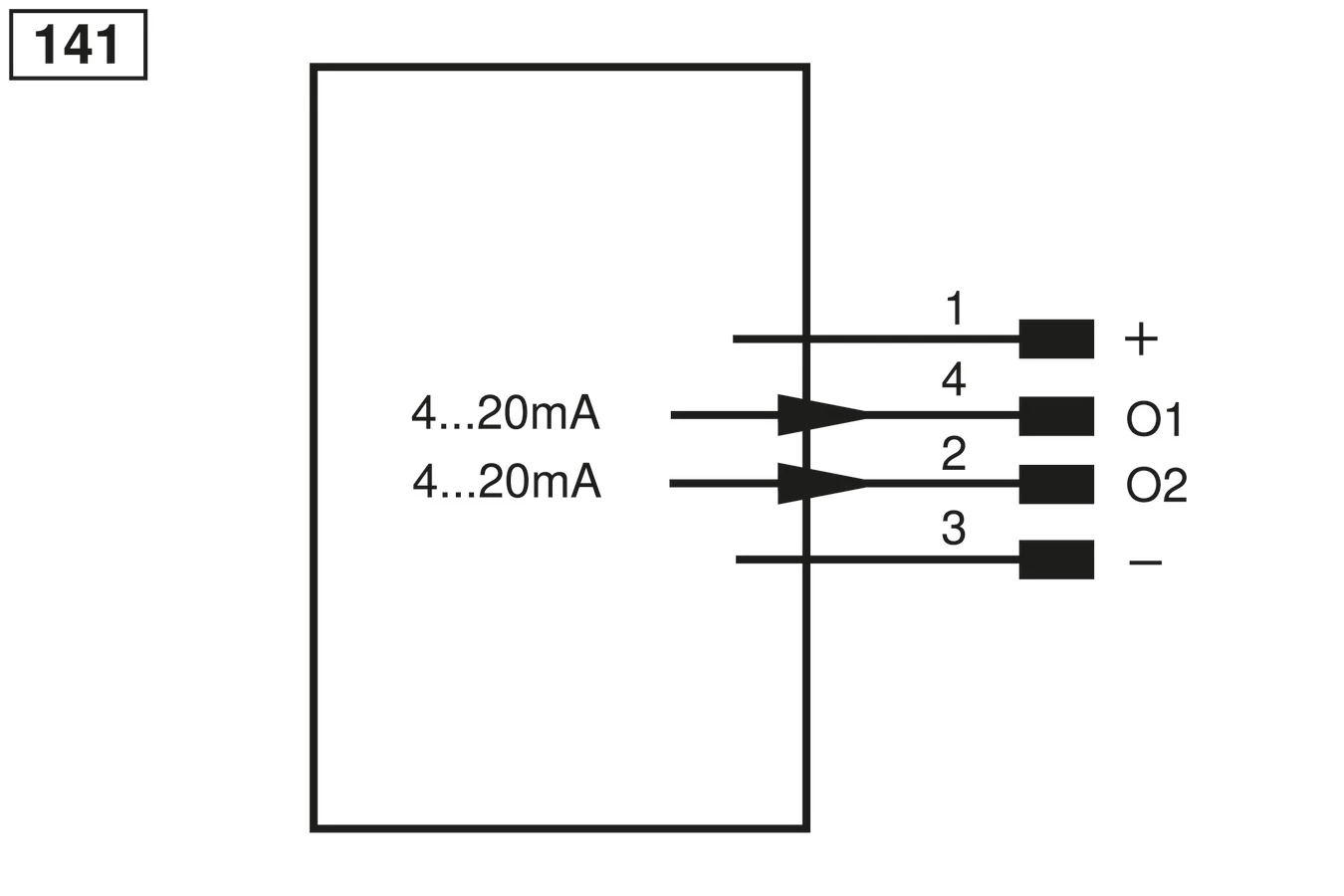

2 analog outputs: 4 ... 20 mA
Flow range: 10 ... 400 cm/s
Medium: liquids oil, water etc.
Response speed: 1 ... 5 sec.
Temp. medium: -25 ... +150 °C
Temp. flow: 0 ... +125 °C
FDA compliant
A single sensor for flow and temperature
Measurement independent of flow direction and installation position
Adapters on request

weFlux² Flow Sensors with two analog outputs simultaneously measure flow velocity and temperature of aqueous liquids, regardless of the position and direction of flow. Benefit: The number of measuring points and the diversity of sensor variants is halved and the greatest possible flexibility is ensured for installation in closed piping systems. The analysis module is integrated into the compact housing.
