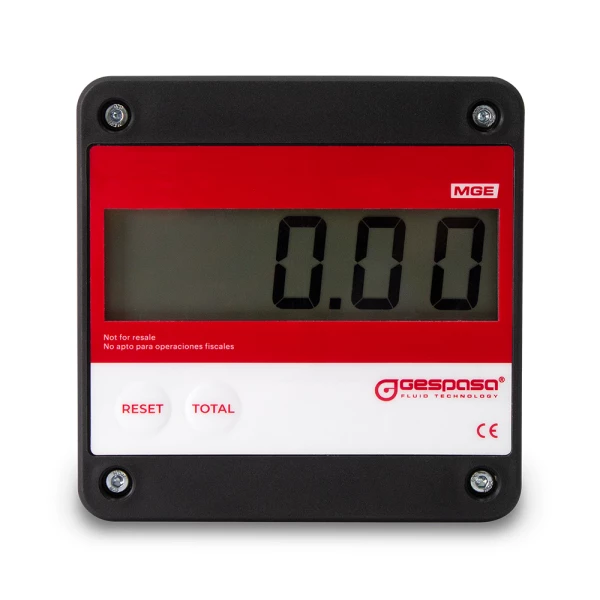

Flowmeter for diesel, lubricants, biodiesel | MGE-110 - ELECTRONIC 5-110 l/min - ±0.5% - F1" - LCD display

MGE-110 - Aluminum electronic meter with oval gears | Type: 32600-CF00000

MGE-110 - Aluminum electronic gauge with oval gears and Viton joints - B100 | Type: 32600-CF00100

TECHNICAL DATA:

Body made of aluminum
Tropical electronics
Measurement via oval gears with high accuracy
Digital representation of liquid crystal
- 3 integers and 2 decimals: " 999,99 “
- 4 integers and 1 decimal: " 9999,9 “
- 5 integers: " 99999 “
Current (approx.):
- 5-110 l/min (diesel)
- 5-80 l/min (lubricant)
Liquid density: 2-2000 cSt
Accuracy: ±0.5%
Maximum pressure: 55 bar
Max. temperature: 50ºC
Min. temperature: -10ºC
Connection via F1″ thread or flange
Long-life button battery (approx. 4 years, depending on application)
Low battery display
Calibration parameters and liter counter stored in PERMANENT memory
